Type | Description | |||
ResHandle as Long | A Handle expression being returned by the ResHandle property. | |||
Type as PutResEnum | A PutResEnnum expression that indicates whether the control loads or saves the bar's resources to or from another control. |
In order to use the PutRes method the Source control must:
Bellow you can find:

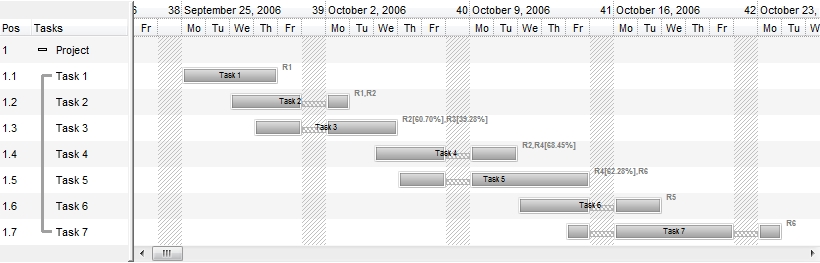

The following sample shows the bar's allocation of resources: ( for instance the Task 1 uses the R1, Task 2 uses the R1 and R2, while Task 3 uses R2 on 60% and R3 on 39%, and so on )
(source, picture 1)

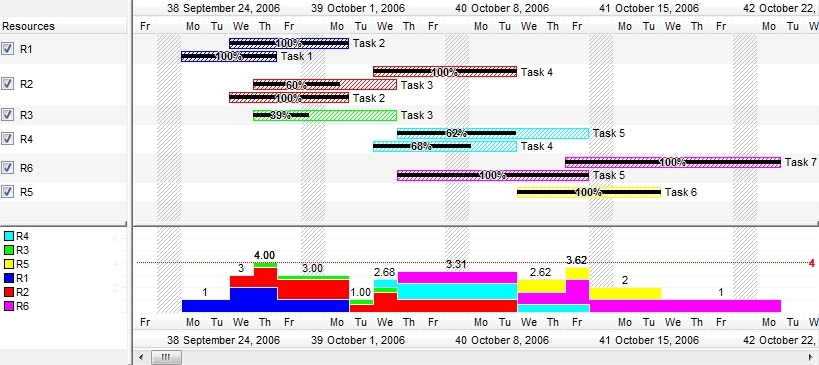

while the next picture shows the resource usage being taken from the first picture ( for instance, the R1 is being used by Task 1 and Task 2, R2 is used by Task 2, Task 3 on 60% and Task 4, and so on ) :
(target, picture 2)
The Source ( picture 1 ) is the original control that displays your activities / bars. Use the Source.PutRes( Target.ResHandle, exPutResSave ) to update the bar's resources in a Source control, from a Target control. IN a Source control, you can use the following properties to specify the usage of resources.
You can use the exBarCaption to display the bar's resources using the <%=formula%> format, like in the following VB sample:
With G2antt1.Chart.Bars("Task") .Def(EXG2ANTTLibCtl.ItemBarPropertyEnum.exBarCaption) = "<%=%" & EXG2ANTTLibCtl.ItemBarPropertyEnum.exBarResources & "%>" .Def(EXG2ANTTLibCtl.ItemBarPropertyEnum.exBarHAlignCaption) = 18 End WithIn other words, the sample allows you to display the bar's exBarResources property as shown bellow:
The set exBarResources property could be used in the following format based on the first character as listed:
- If the first character is +(plus), the rest of the expression indicates the resources to be assigned to the current bar. For instance, if the current bar has the exBarResources property as "R1,R2" , and we call set exBarResources as "+R3", it means that the R3 is added to the bar's resources, and so the new exBarResources property is "R1,R2,R3".
- If the first character is -(minus), the rest of the expression indicates the resources to be removed from the current bar. For instance, if the current bar has the exBarResources property as "R1,R2" , and we call set exBarResources as "-R2", it means that the R2 is removed from the bar's resources, and so the new exBarResources property is "R1".
- If no +,- character, the new expression replaces the exBarResources property. For instance, if the current bar has the exBarResources property as "R1,R2" , and we call set exBarResources as "R3,R4", it means that the new exBarResources property is "R3,R4".
With G2antt1.Chart.Bars("Task") .Def(exBarResourceFormat) = "`<b>` + name + `</b><font ;5><fgcolor=404040>` + (percent = 1 ? `` : (round(100*percent) format ``) + `%` ) + `</fgcolor></font>`" .Def(EXG2ANTTLibCtl.ItemBarPropertyEnum.exBarCaption) = "<%=%" & EXG2ANTTLibCtl.ItemBarPropertyEnum.exBarResourcesFormat & "%>" .Def(EXG2ANTTLibCtl.ItemBarPropertyEnum.exBarHAlignCaption) = 18 End WithIn other words, the sample allows you to display the bar's exBarResources property as shown bellow:
The Target ( picture 2 ) is the control that displays the Resources column, where all resources found are being added line by line, and its usage on items. Use the Target.PutRes(Source.ResHandle, exPutResLoad) to update the Target control from a Source control. IN a Target control, you can use the following properties to specify the usage of resources.
Private Sub G2antt1_BarResizing(ByVal Item As EXG2ANTTLibCtl.HITEM, ByVal Key As Variant) With G2antt1.Items .ItemBar(Item, Key, EXG2ANTTLibCtl.ItemBarPropertyEnum.exBarEffort) = .ItemBar(Item, Key, EXG2ANTTLibCtl.ItemBarPropertyEnum.exBarPercent) End With End Sub
Now, let's display the Resources of the Source into the Target control ( Target.PutRes Source.ResHandle, exPutResLoad )
First step is specifying the ItemBar(exBarResources) property in the Source control. If the Source control has no bars with the ItemBar(exBarResources) property, no resource will be displayed in the target control.
The following sample adds a column and two activities/bars, with allocated resources:
With Source .BeginUpdate With .Chart .FirstVisibleDate = #1/1/2001# With .Bars("Task") .Def(exBarHAlignCaption) = 18 .Def(exBarCaption) = "<%=%49%>" End With End With .Columns.Add "Tasks" Dim h As Long With .Items h = .AddItem("Task 1") .AddBar h, "Task", #1/6/2001#, #1/12/2001#, "K1" .ItemBar(h, "K1", exBarResources) = "R1,R2" h = .AddItem("Task 2") .AddBar h, "Task", #1/4/2001#, #1/14/2001#, "K2" .ItemBar(h, "K2", exBarResources) = "R2[75%],R3" End With .EndUpdate End With
and the Source should show as:
The second step is calling the PutRes method as follows:
Target.PutRes Source.ResHandle, exPutResLoad
and the Target should show as:
The PutRes(exPutResLoad) method updates the Target as follows:
The code, defines the "Task" bar to display "Progress", and to be stacked on the same row. This code, should be called once, before calling the PutRes and so the Target should show as:With Target With .Chart .FirstVisibleDate = Source.Chart.FirstVisibleDate With .Bars.Add("Task%Progress") .OverlaidType = exOverlaidBarsStack Or exOverlaidBarsStackAutoArrange .Shortcut = "Task" End With End With End With
Now, let's display the histogram of Resources usage in the Target control The Target control represents a task into it's histogram only if:
The code does the following:With Target With .Chart .FirstVisibleDate = Source.Chart.FirstVisibleDate With .Bars.Add("Task%Progress") .OverlaidType = exOverlaidBarsStack Or exOverlaidBarsStackAutoArrange .Shortcut = "Task" .HistogramPattern = exPatternShadow .HistogramCriticalColor = .HistogramColor .ShowHistogramValues = "1" End With .HistogramVisible = True .HistogramView = exHistogramCheckedItems .HistogramHeight = 164 End With With .Columns.Add("Names") .Key = "Resources" .Def(exCellHasCheckBox) = True End With End With
The third step is calling the PutRes method as follows:Private Sub Target_BarResizing(ByVal Item As EXG2ANTTLibCtl.HITEM, ByVal Key As Variant) With Target.Items .ItemBar(Item, Key, exBarEffort) = .ItemBar(Item, Key, exBarPercent) End With End Sub
and the Target should show as:Target.PutRes Source.ResHandle, exPutResLoad
Now, let's make the histogram displays cumulative-percents instead: So, the first step is to change the Target's code initialization as follows:
The code does the following:With Target With .Chart .FirstVisibleDate = Source.Chart.FirstVisibleDate With .Bars.Add("Task%Progress") .OverlaidType = exOverlaidBarsStack Or exOverlaidBarsStackAutoArrange .Shortcut = "Task" .HistogramType = exHistOverAllocation Or exHistCumulative .HistogramCumulativeColor(1) = RGB(255, 255, 0) .HistogramColor = RGB(196, 196, 196) .HistogramPattern = exPatternShadow .ShowHistogramValues = "value > 100 ? 255 : 1" End With .HistogramVisible = True .HistogramView = exHistogramCheckedItems .HistogramHeight = 96 End With With .Columns.Add("Names") .Key = "Resources" .Def(exCellHasCheckBox) = True End With End With
The third step is updating the exBarEffort after PutRes call as follows:Target.PutRes Source.ResHandle, exPutResLoad
The code enumerates all the bars in the Target control, and changes the exBarEffort property to be exBarPecent of exBarDuration. This code is required as for exHistOverAllocation type the work-load for a task is computed as ItemBar(exBarEffort) / ItemBar(exBarDuration). The work-load for the task is the work effort / task duration. (i.e. If item.exBarEffort = 1 and the bar's length is 10 days, then the work-load = 0.1 or 10%). We also, should apply the change of exBarEffort when the BarResizing event, such as:With Target.Items Dim Item As Variant For Each Item In Target.Items Dim Key As Variant Key = .FirstItemBar(Item) While Not IsEmpty(Key) .ItemBar(Item, Key, exBarEffort) = .ItemBar(Item, Key, exBarPercent) * .ItemBar(Item, Key, exBarDuration) Key = .NextItemBar(Item, Key) Wend Next End With
and the Target should show as:Private Sub Target_BarResizing(ByVal Item As EXG2ANTTLibCtl.HITEM, ByVal Key As Variant) With Target.Items .ItemBar(Item, Key, exBarEffort) = .ItemBar(Item, Key, exBarPercent) * .ItemBar(Item, Key, exBarDuration) End With End Sub
Now, let's update the Source control from the Target control (Source.PutRes Target.ResHandle, exPutResSave): The following code should be called to synchronize the Start/End/Resource-Usage from the Target to the Source
The PutRes(exPutResSave) method updates the Source control as follows:Source.PutRes Target.ResHandle, exPutResSave
