SwimLane.AlignObjectsToGridLines Property (ExSwimLane)

By default, the AlignObjectsToGridLines property is exAlignObjectsToNone, which indicates that no alignment is performed, when the elements are shown on the surface. Use the AlignObjectsToGridLines property to align the elements to the grid lines. Use the MinorGridWidth / MinorGridHeight property to specify the how minor grid lines are displayed/aligned. Use the MajorGridWidth / MajorGridHeight property to specify the how major grid lines are displayed/aligned. The AutoSize property of the Element specifies whether the element's size is computed based on the element's content. The CaptionAlign property specifies the alignment of the element's caption. Use the AxisStyle property to hide the axis lines or to display with a different style. Use the AxisColor property to specify the color to show the axis lines.

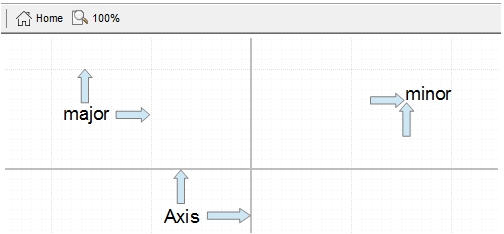

The following screen shot shows the axis and grid lines:

		Type	Description
		AlignObjectsToGridLinesEnum	An AlignObjectsToGridLinesEnum expression that indicates whether the elements on the surface are aligned to none, minor or major grid lines.
