The ShowViewCompact property can arrange the dates, in the schedule view:
- exViewCalendar (0), as they are shown in the calendar panel
- exViewCalendarCompact (-1), as they are shown in the calendar panel, excepts that the first day of the month starts right after the last day of the previously month, or start to a new row. This option is valid, ONLY, if the calendar panel displays 1 x 12 month. In other words, the Calendar.MinMonthX and MaxMonthX properties must be set on 1 ( by default ).
- exViewSingleRow (1), in a single row only, so the view displays days one after other, no matter of what dates are selected in the calendar panel.
- exViewSingleColumn (2), all days to a single column (vertically).
- exViewSingleRowLockHeader (3), all days to a single row (horizontally), while the date header is shown/locked on the top while the chart is vertically scrolled.
- exViewSingleWeek (4), weekdays vertically across 7 rows.

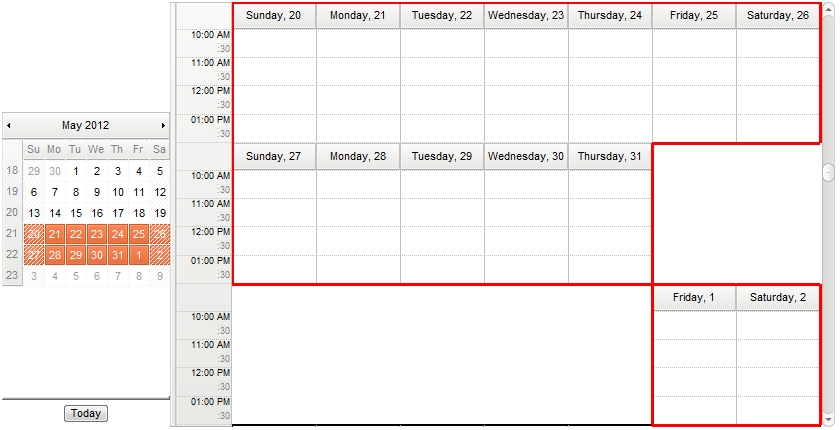

The following screen shot shows the schedule view, for ShowViewCompact property on exViewCalendar:

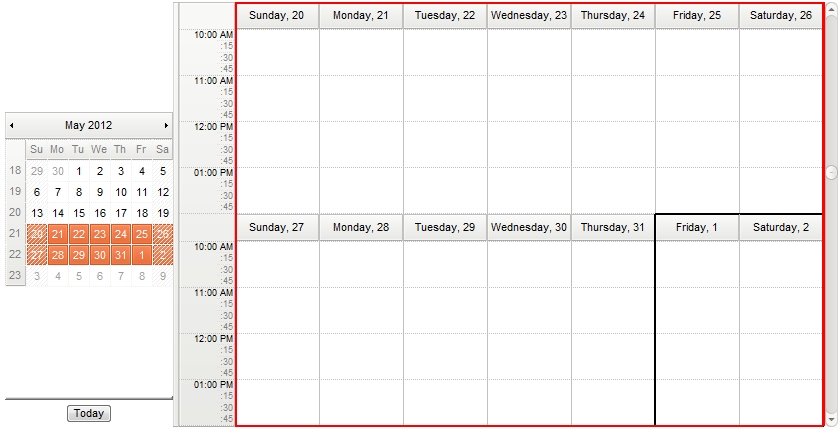

The following screen shot shows the schedule view, for ShowViewCompact property on exViewCalendarCompact:

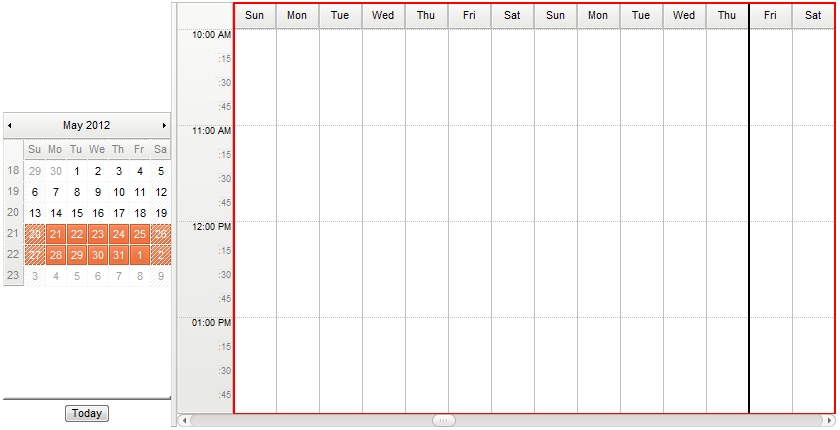

The following screen shot shows the schedule view, for ShowViewCompact property on exViewSingleRow:

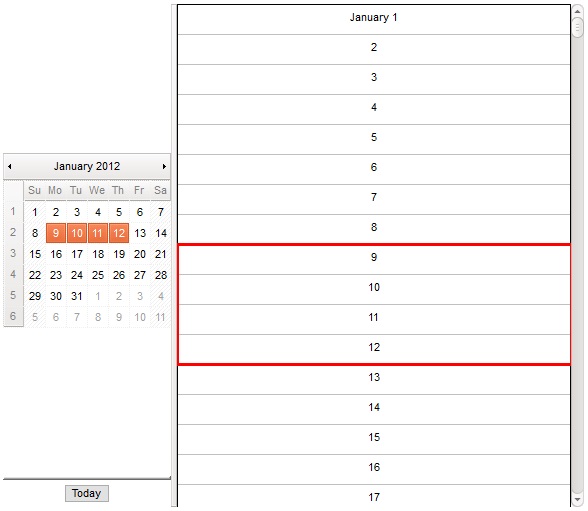

The following screen shot shows the schedule view, for ShowViewCompact property on exViewSingleColumn:
The following screen shot shows the schedule view, for ShowViewCompact property on exViewSingleWeek:
