The identifier you choose for the skin is very important to be used in the background properties like explained bellow. Shortly, the color properties uses 4 bytes ( DWORD, double WORD, and so on ) to hold a RGB value. More than that, the first byte ( most significant byte in the color ) is used only to specify system color. if the first bit in the byte is 1, the rest of bits indicates the index of the system color being used. So, we use the last 7 bits in the high significant byte of the color to indicates the identifier of the skin being used. So, since the 7 bits can cover 127 values, excluding 0, we have 126 possibilities to store an identifier in that byte. This way, a DWORD expression indicates the background color stored in RRGGBB format and the index of the skin ( ID parameter ) in the last 7 bits in the high significant byte of the color. For instance, the BackColor = BackColor Or &H2000000 indicates that we apply the skin with the index 2 using the old color, to the object that BackColor is applied.
The skin method may change the visual appearance for the following parts in the control:
- control's borders, Appearance property
- control's header bar, BackColorHeader property
- control's filter bar, FilterBarBackColor property
- selected item or cell, SelBackColor property
- item, ItemBackColor property
- cell, CellBackColor property
- cell's button, "drop down" filter bar button, "close" filter bar button, tooltips, and so on, Background property
- and so on.

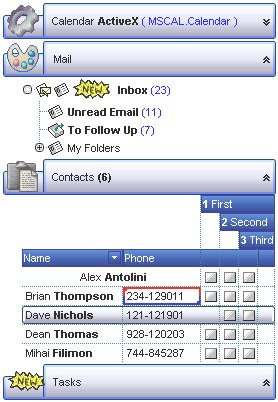

The following VB sample changes the visual
appearance for group headers. The BackColorGroup
property indicates the indicates the default group's background color. Shortly,
we need to add a skin to the Appearance object using the Add method, and we need
to set the last 7 bits in the BackColorGroup property to indicates the index of
the skin that we want to use. The sample applies the "
"
to the headers and the control looks like follows:
With ExplorerTree1
.VisualAppearance.Add 1, "D:\Temp\ExplorerTree.Help\tabup2.ebn"
.BackColorGroup = &H1000000
End With
The following C++ sample changes the visual appearance for group headers:
#include "Appearance.h" m_explorertree.GetVisualAppearance().Add( 1, COleVariant( "D:\\Temp\\ExplorerTree.Help\\tabup2.ebn" ) ); m_explorertree.SetBackColorGroup( 0x1000000 );
The following VB.NET sample changes the visual appearance for group headers:
With AxExplorerTree1
.VisualAppearance.Add(1, "D:\Temp\ExplorerTree.Help\tabup2.ebn")
.Template = "BackColorGroup = 16777216"
End With
The following C# sample changes the visual appearance for group headers:
axExplorerTree1.VisualAppearance.Add(1, "D:\\Temp\\ExplorerTree.Help\\tabup2.ebn"); axExplorerTree1.Template = "BackColorGroup = 16777216";
The following VFP sample changes the visual appearance for group headers:
With thisform.ExplorerTree1
.VisualAppearance.Add(1, "D:\Temp\ExplorerTree.Help\abup2.ebn")
.BackColorGroup = 16777216
EndWith
where the 16777216 value represents 0x1000000 in hexadecimal.

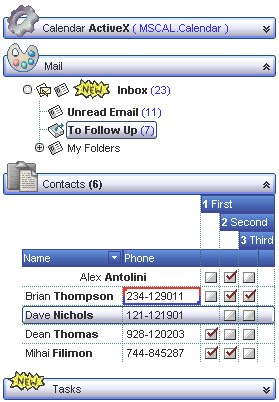

The screen shot was generated using the following template:
BeginUpdate
Images("gBJJgBggAAwAAgACEKAD/hz/EMNh8TIRNGwAjEZAEXjAojJAjIgjIBAEijUlk8plUrlktl0vmExmUzmk1m03nE5nU7nk9n0/oFBoVDolFo1HpFJpVLplNp1PqFRqVTqlVq1XrFZrVbrldr1fsFhsVjslls1ntFptVrtltt1vuFxuVzul1u13vF5vV7vl9v1/wGBwWDh+Dw1bwuJh0Sf8txeHyFXx+Ryk9wsnxbAzUpycYxWNiWMyujleXjOm0+gjKA1gA1iA0Wf0mz2WY1WwjWywuvz2N1GzyO11ON3mXxe6xfFzvAwXI1UY3mh5292PJ1vMw3T7Hbo3T73L7nhl3f5/i8034Xn9Xr9nt91Cio+lXyjsfkMjAEkk/69Hg97UpSeZ3pSeBnpScAHwO/iMmBBaMQalJAQc10JvylUJkAD8Dh+lJ8Q4k5/D+zjygAgI")
Images("gBJJgBggAAwAAgACEKAD/hz/EMNh8TIRNGwAjEZAEXjAojJAjIgjIBAEijUlk8plUrlktl0vmExmUzmk1m03nE5nU7nk9n0/oFBoVDolFo1HpFJpVLplNp1PqFRqVTqlVq1XrFZrVbrldr1fsFhsVjslls1ntFptVrtltt1vuFxuVzul1u13vF5vV7vl9v1/wGBwV/YGFAGFYGDxVbxGHw2NxuLyVKyGPy2JxsPiT/yedn+RjOVzGGzWlh2bz2pl+gjGsx2jxOaQGz1Gmzma1Wq2aAk+uzOn2wA3fC2nB3OSxvDjXJ2m/znD4Oa13Hxei4m85ek4Hb5+06Hc6nh1uX1+o7G18HT8XrjXR0/n8/G9nzl/uznq+n5mXy/X9/z/wBAKaIqHyVQKjqPpCkYAJIk8Gpu3EBJS06TnmziTnBC6NHAH6UmAB8PAGlJAQejMSJVESUxSjRAAOlJwRck58RAk5/Ro9pPwnDSMoCA=")
Images("gBJJgBggAAkGAAQhIAf8Nf4hhkOiRCJo2AEXjAAi0XFEYIEYhUXAIAEEZi8hk0plUrlktl0vmExmUzmk1m03nE5nU7lqAnwAYFBnlDolFo1HpFJmkOAE+QFAoVBYFQqdKq1XrFZrU2plMp1UsFfr9Srdls1ntEzrsNiL/ps/sU/sleuVRoVpvF5vVDtduulPudswNuslju1VveJxWLk19ttvwFCpmDsGToVxp+MzWbs2Ov+Vtk/t8XymUx2c1GppOOw1Ty1T0WismmtlM1W33FEz+zw9hzOxzOetm54nFoe8qfIsGF3/B2vDjGi43T6k45XXy/Nnva6vd7007HJ7MX4Hk7nS7/p9Utskz8vr+Hxono+X1+33/HGig+lX8jiPJAjCRpGjLMpwph/D+lJ+A+lJ8AOlJ4QIjJwJUxECpnCaMgGlUOJMYAEwilR+BylJ/j3Ey3JMgIA=")
VisualAppearance
{
' Header
Add(1,"gBFLBCJwBAEHhEJAEGg4BawDg6AADACAxRDAMgBQKAAzQFAYZhoHKGAAGEYxRgmFgAQhFcZQSKUOQTDKNYyAWCQCgkOA3STDIxxCKIbhrEAYQIjeCROD1F4hThHMBzVDEcQ1CKUQAkeYKEhyII+T5PE6UPRELSDIaERhoWa6Bo2IZKTLVUTxCKQahLLivIhGUYKfgmY5lVpVcbQHRlNSfFFscp1DJ0YRHNiaJqtGa7Lj2WpASYNdRxFIEDz3DasLwwcALPwOUocVTiYAYTb2DzBNDJbBsaxLCxzEoWZRbNTWfQNZRhIIbBqkCQJVjee6hZJpFwjHo8E5TILWLy1e7dCo3F6/ZrmFjxDR1M4rEASIRDHL+GiACYJGCcBwGKJEFwYg2hwJACGAXAMgQTZtkaBpQhERAkEuSoZgYIpvAAVgtC4PQXHuPgen+D5Tmedp5H4Po/h+P5rnufB/l+OAFn6AIgAeRAAgCYIIBYCoBCCSAmA2ApgmgDgHHyRInkIFQlmEeBmBaBphggcgagcYgIH4IoHiISIGCWCJiGiJgfHuYQwjiIAUAMOI+DGDAjCiVg0g2Yw4mYNoOiOCJuD6DxkAichCg+ZA4mIBh8GQSQmEGEokFkNhMhOZI5EYOYRl6cogFQDJlGkYhXhYZZJG4XoWiYCR2GGF5mCmFhkhmZg5iYZoaiWeRQC4KgFHkYhxhwJwplYdIdmcOZmHaHongmbh+h8aAJnKAofmgOZ2G4K5FiCToIiKKIaC6DojGkCgyhKI5pDoRoUiWaRqGaFYmmmChyhGIZFlCYIvigag6gqJIpmoaomiWKpqgqMoqisawKj6MorisSpGjWKhqAqTo2i6a4qnaN4vmuSwCj6KgmmKXBgA8bBrCKR4yGySwuk6MotAsNpRjObQrFaVI1m0OxmlaNosnsFBljILZyl6YY4m4C4WmKOYuEuHpqjobpLiKbo6m6e42nCPJuEsFBnBCCx7l6eY+C+K52nyP5vjwBp+kCMAMA8BpBHCDATAqQZwjufhuC+RoxAsEJEjEHBPBaRRxgwUwakWcY8GcHJHnGbIHB2SJyAyEwZkORpxBiP5KHKPIrCyS5ymyRwtkycwMlMMpNHODJfDqTYzkyZw9kwcJxk8KpQgufQTEaUJ0g0FxJlGdItDcTJTnSPRHE6VI1A0TxWlGZpjCMQpWgQbRzF6Vp2A0dxhledgthcZJZnYPYnGaWo2g2LxulkNYRlwJwMgbgtimHOLod4GxfD1F2G8TYzh9i9HeNwB6Oh3j8BeAUYYbwphxE8D0RLg07NNEeCEZI8R+CvBKMsOQnBfg1GYPMTgxwejNHmPwU4FAfgKFMH8JI0w6C9B+FUag9ROhHC6NUeo/Q3hhGyPYLorwxjbHsJ0Y4WRigQC6C8PQZx7j+AeH0cI+APAnEKOIfIHgfiVHGHkTwTxNjlHyN4R4hQbgaHIDgXI6h9D+FuLEdo+wvDvFmO8fYnwDi9HgPwT4HxmjxD6B8F40x3h6EIF8V49wND/EOOWLonxHjrHyP4b4zx4j9H8P8d49B/ifHGP8QATxmj2EMCccYARCBcAQIEKAHgDBAEwBsAQ4A6AREEBAJwBxghYBKAUUApALiDCgCkG4IQKAhAONAPgIRBjQEUBAEAYgBEB")
' HeaderFilterBarButton
Add(2,"gBFLBCJwBAEHhEJAEGg4BAQEg6AADACAxRDAMgBQKAAzQFAYZhoHKGAAGEYxRgmFgAQhFcZQSKUOQTDKNYyAWCQCgkOA3STDIxxCKIbhrEAYQIjeCROD1F4hThHMBzVDEcQ1CKUQAkeYKEhyII+T5PE6UPRELSDIaERhoWa6Bo2IZKTLVUTxCKQahLLivIhGUYKfgmY5lVpVcbQHRlNSfFFscp1DJ0YRHNiaJqtGa7Lj2WpASYNdRxFIEDz3DasLwwcALPwOUocVTiYAYTb2DzBNDJbBsaxLCxzEoWZRbNTWfQNZRhIIbBqkCQJVjee6hZJpFwjHo8E5TILWLy1e7dCo3F6/ZrmFjxDR1MgACzjBIhqCUQTuACzRZGPj+RwNAOF5cGm95sCQEwJAkQhBhwa5ei4E5cgGGINgcUwojiRBvDuG49iaU4EgATALgGEIJj8aJQloEgoEIQhXC0MwGBEc5AAoYpJHCdAugIYI4CoDIDmCaBGA2BJhAgUgSgUYYIF4GoFiGSBmB2BpgkAAgegiYgIhYH4JmISIiCaChhmiCgOBKII4kCF4MiMSJGDaDJjHiVg4g6Y4onYOYPmOSQCD6EBkEiagKguApigAUAMmSKQyEuExlAkPhShOJRJEYVYUmUaRmFiFplHkdhaheJQ4gYDIXmYSRyGWGAmgmHhqhmJpJFIYoCgqARQDOHBnDmSh0h2ZxpmYdYemeCZyHqHxoAmfoCh+KBKAaBYeiacI4igFZnDoMoLiMaQKD6EojikShGhWJJpGoZoYiaaR6HaGonimCgki8FoDDqDolikKhqiaKIqmoeo2iqK4qkqPoyiwaxKkKNosmseoyiIFxDgKPo8i+K5an6QowGwSwCkaMJsHsFpIjKbIrDaSYzmySxCkSLpsmsRpWjUbYLEqWo1m2OxmkOIhLHGAA9jgbg7gqZI5m4a4mmWOpuguMpqjsbwLj6co7i8S5GnWOouAGFpjj6Cx7nKfo+nAC53AGP5wCwFwEkGcA8CcBpCjCDAvA6P5uAGHBCC2cQsFME5FHGDBfBqRYxkwZwdkacZsgcIJInGfIXCKSYxioJI/BqRAsi8LZLZaRwwkycp8lcMpNjKQ5/DqTZzkyUw9k4NAMn8QvVCGPBGC+dBtCMR5SHSTQvE6Uo1A0NxKk6NRNFcUZTnULRnFiVp1H0dxakqBw9B8YQvnYPYXGKWZ2E2IxmlodRdjcbpaHcDYvHKWo3E2I4dYuRogmCMMMXoCBtjmH6L0eAGx3gDF+PALgLwEjDHgHwJ4DRihxA4F8Dowg3gjFwJwMgcguCnBOMoeYHBfg1GWHMTgzwdjNHmN0B4QRojzH6C8Io0w5uiE8D0RI3QvhbGs1UR4YRsj1H6K8MrQhOi/DqNwe4nW0DdHuP0U4VAfgKFMH8RI4w8C+B+JUcg+RPBHE668fwbxQjpH0F4V4ox1j6E8McuoEAvAvF0GcfY/wHi9HiPwD4JxijyH6B8H41R5h9LGNuJg3xHjFCIJocgOBcj6H8P8W48R+j/C+O8eQ/xvjkAAH8aABgBBABwA1RYRACptHyPoBAt4HiGF4BAQQUAfAKCCBgFYBBwC0AyIMCAbgFjBGwDUA4oByAfEIFAJwBhDAoBGAkQgXAUCFCgJ4CwQhMBbAUOEOgMRDAQGcBcYYWAygNFCKQG4hwoCpCIKIYgVwHjRCoEEQ40QFAgBEBIARAQ=")
Add(3,"gBFLBCJwBAEHhEJAEGg4BBAEg6AADACAxRDAMgBQKAAzQFAYZhoHKGAAGEYxRgmFgAQhFcZQSKUOQTDKNYyAWCQCgkOA3STDIxxCKIbhrEAYQIjeCROD1F4hThHMBzVDEcQ1CKUQAkeYKEhyII+T5PE6UPRELSDIaERhoWa6Bo2IZKTLVUTxCKQahLLivIhGUYKfgmY5lVpVcbQHRlNSfFFscp1DJ0YRHNiaJqtGa7Lj2WpASYNdRxFIEDz3DasLwwcALPwOUocVTiYAYTb2DzBNDJbBsaxLCxzEoWZRbNTWfQNZRhIIbBqkCQJVjee6hZJpFwjHo8E5TILWLy1e7dCo3F6/ZrmFjxDR1MgACzjBIhqCUQTuACzRZGTj+RBpCAHJ1mm950CQEQJmQQJCDwa5ei4E5cgGGINgcUwojiRhsDeHJ9gYIxpkIQAmAWQJIESX48GgbQJAo+gVksTJBgQXJwAKGIyFwPQLiCKAyAuAxhAgPgSgOIRIEYFYEmEaBmBiBphHgdgageIZIDQAIHmISIGCaCAigiFgpgmYooH4I4DkTHwxCWYw4lYMoNmMSJiDaDhjkibg+g6JAInYQYPmQKQWDuApinCOIgBQAw5C4TYTCSaRGFCFJknkVhShWJRJF4WoWGWSRiF6FplnkUgigMZgJhYXYZiZVxohqZh5jYVYYmCMogFQDJnCmUhzh0Z4Jl4eodieSZmH2HpnmoBoAiCZ56BaAohieOZAC4KgFHmUoNiMKJqEaEIkmiehWhKJYpEoXoaiYaZKGKHommmehmgoK5FiCTokimKhah6KoqGqSoii6KpqnqNowiyawqlaMYtmsSpii2KJFlCYIvi8a56nqQIwmwKwWkGMZsEsIpGjIbJLC6Toyi0Cw2lGMRrksPpSjWbRrGaU42m2CxylqMQoiKXBgA8bgrhKY45G6C4emqOYukuJptjqbprkacI8m6e5WnKPYujuBBljkL4yl6fY/m+TAGn6QIwAwDwGj6T58CcCpBkOXArAuQRxAwEwSkMMRMAKYQZkQIpfBiRoxhwbwekccgMHMIpHnIPIDA6SethMKpIHKPIXC6SpoiKfBrBCMwslMM5NHODJfDqTYzkyZw9k6cxciMPpQnQDQXD+UZ0EycwxBuRBin8TJTjSXQ/FKVB1E0QxWlSdR9QuUI1g0dxVleNYdgcXpMEcPQ3GUL52H2JxmlqdoNjMapbHcDYXEKWo3D2Ox2lwO4fYfh6i1GiEYIwyxfgIG4AcAovx4CcAeAsYI8BuBPAiMUeA/A3gVGOHETgfwSjEDeKMXAnAyByG4McF6sxODfB6M0OgHB3hDWiF0F4SV6B9CeE1qI1AoieB6Ikbof2Sh2C6K8NI2x7B9GeG0bodwOjfD6N4fAHRziFG+PgPoxwuA/AUKYP4kXRA+C+7ofQHgzilHOPoPwjxUjrH0N4Z4qx2j7A8OcUI1wIBeCeMIM4/A/gvGKPMfgnwjjNHoP0T4Xxuj1D8B8N44x7j+C+K8ZoRQNDkBwLkfg/w/jXHwP8b49AAh/FgA4AAQAkAFACGAIgBxAhQA0AYIAmANgAE+MARYfw4BIDWMEJALQCDgGI3kGAXgGhBGwDkA44BuAhEGNARQEAhA4CaAUcAiAxCCFgKgIowhkBdAUOEQgLRDAwF8BkIYWA0gNHCJwkY0B1AcCGLgPoCxKBSBaEUSIDQKjECwIUCIogRAiBACAgI")
' SelectedItem
Add(4, "gBFLBCJwBAEHhEJAEGg4BV4Fg6AABACAxWgKBADQKAAyDIKsEQGGIZRhhGIwAgaFIXQKMUIxVAcLQxCgCYRhYABRiUAoJkjkMYhSDOFgzARHcxRPDgARrDyZQAkOQ5FDGFo+ShFQxTRC9CQpHaEYqkeA3fgmTYXTxJM7yfQVFxlCwTIwFGQqJgmVpPABYERyWKoSzJMyERpGCyIDqqbJXVxFYj3DCscw/KIYaqlGS5Ni+IZ2TLNMz4BAdEQfKSEaAgOToboaE5GB5GeRRbT1HYtKDEcQhepIbpaH5YQjkMBibBNZ4pAavcroeK7FqeI5ua7ach5fisB5EAARYREGrcEqPGZ5ShjGJ1MK0CxzIwDboBPbNdwXP56cIAAx8IJbD0GJQGoIQ1jgGAbhmTZXGsLZ7AsTpKDEVolG0QAaJyA4bleZgCiEJpjHmSJaGENgLgwRpTgUCAhAMEIElCSZ+EUAxkCQKB2huJR0BgRQPkAPZuFOCpSGgewckOUACBSBYhFgXgagYYZIGIHoGmGeB2CCCJiCiFghgmYhIiIJoFmEEZtEwAAilKFB9JWUooi2DRjHiWg4g6Y4onYOYPmOSQCD6EBkEkDhGhCJIJBYSYRmOCJIFKCxhmMBIuCwZQpFIU4VGWCReFqFYlkkZjpGWaYGGCGJlnmFhihmJhJh4F4Hg+eY0kULILFmPhxhwJwplYdIdmcOZmHaHongmbh+h8aAJnKAofmgOgGHKGxPnmLgXiIDISli+BonoOtEGkKhWhGJZpEoYoWiYaZKG6HomioCh2iGJ5pAoIoKgUaIDDCOgvCqKoyiuKxrAqPuCisSpGjWLJrGqZo4i6ax6naOoviuSo2iaBRmkmNJQC+DALB6SYyCyKw2kyM5sjsRpOjSLUIFaNRtgsUpajWbY7GaSowlAOguG0NQMCMEpkjmLhbh6ao6G6S4im6OpunuNpwjybwrlacY9m8S5inaOZuAsFJ/DYDBjCMAJAjAHAPAaQRwgwEwKkGcI8CcDJDnCbBHA2RJxAwUwSkCb5bgifw3AyMwzByR4xlwfwikgchMgMJpInIfIXCiSpyiyNwpkucpMkMLpHnGGoiG0OAMnMQw4k6M4cm8PpPHR2BCk+dA9AcRJRnQbQnEWUp0g0MxKk6cxVgYbQ5eSUxUlWNRdF8WpWHWTRjF6Vp1n0dxglidgthcYZZnYTYjGaVZ1BoIJoDWTYNj8cZcDcLZXHSXZ3D2M4dovQ3gbG8P0Xw8ANjnAKL8eAfAHDlFsM0U4WRbBtHiFwM4FxjDyA4H8Eoxw5CcEeCsZI8huDPBiM0eQ/B3g1GeHMTgbwIB/eYPkX40h6D9BuFEao9QuhvCmNceonRDhdGwPYTonw2jZDuB0V4cxtj1A67AOInA+j/EGOAPAXgXiJHGPgPwTxGjlDyB4L7zB9AeDOKUc4+g/CPEKNETw5wcjPHYPsPw1xcjvH2N8B4ux4j8A+CcYo8h+gfB+NUeYfRPhPiiPsToGR4B0E6D8T74A/DfGePEfo/h/jvHoP8T44x/iACgAYAQQAEANAAOAHgBQ/DPGQHUBwoR4gDDBA4QQEAnAJCCFgEYBRwCkAwIIaAZgHBBFwD0AwoQCAdEIDAPwBhdAxHkDsA4ZATiFBgKICoQhsBZAWOELgMRCjQGUBgIYOA2gNDCMQGghwoDeA6MMTAVQEiHDQO0D4MUXDEBQIkCI4gaBJEQLEFwJAiDIEqBMMQhAniKCiDoFQRQMCrAoOIBYowPhDF4HcYouBdgXBEPQMIjAIiOBeMYLAxQMijBIGcRoURTA2CMIg144w+BtEWNENAeBHgRikGMXgdqgjuB6EcbA8wPjjHIIAR40gDBCCQDkBoIBSBEEKJEGQHgdTVHsDwQ4lBHiSBkEIJISQsgpBKOQTgmRJDSDUEwJIuQegnDKAQTglApB+CiMpboI0kj0A+HIUwVRlCpCyCscodBYiVFkM4LASwkhlBaGUYgtxLhSG0F4JYmQ9guHKEujggxqB6GYDkRYMQTA0GSJkCYLgxjMGyJUGYpgyDPE0FMIwagmgJFaDQcwvBqiYGmAgPYjw4j5BuGYfg3hOATEcHEJwWRhg5HOCQdAnBpimDsE4XI3QdCnEIO0TwMxfBumqPoHwRxmD3E+DMcQfQnjZHyD8c58xPjUAVKYHQDQghoCKAQUIVAPTnEyPUHohxoD6A+LQIwiRogqBSEUdAtQMiiFoG4RlfwahHDSAUD4pAqB6EkFIDQSwkDoEXRxLAfgpC6C2EsFIdQYimAoM4S40wtBlCaKkUoNxThUHMJ4KYig+hOHSP0HopRqCojeNEfoUQ1A9CMKkuApQqDaEmFMdQZQoCpGqEYVQVQdCtCoKoYoVRVg1C8KIV41AxCMGoEUMIrAqiOFkFYLQzQsjrCKGkVoVRXCzBIOQUAUwIhqBSK4JArhdAiFUO0Lg6xeh1FeAgUwtxKDSAEQEA=")
' Marks a cell
Add(5,"gBFLBCJwBAEHhEJAEGg4BEcMQAAYAQGKIYBkAKBQAGaAoDDMOILQiMQxDPBMKgBBCLIxhEqoJJuGofRSBMIgFBIaBrEiBkjSiLkMIYAAMQCQTKDfxBG4ZIhmSZ4WgwAIsSZMAwzAKkYQPHikJxlGa6p6AGqhKIoaTKNhqSoxUxVMIzcKQahLLivJ6GUYKfgmY5lVpVU5QHKFUyfFiVJYlahpCqyCQuC41No1RRdbSrHynahkWhrNrufZ8RbhU7yLSEEyHQaIaoxKp6XwWf4RWDmFoABY9RTJHzFMQyXCrPhENpTWYMcwTLidV4TKqYLAzOrcbx2ZpkXTrYAXRbVU4pLK3MYuDR8RymLKsYZvd7UbqONZlTzadwrHbLb4rOo0nOeZbH6DhuCuEocGuMpSA4k5fmWQhrjcUxuE+BwUAaRwMCyApRhePgJnEEp8n0GB9lcUx9m0aBRhQBCAgA==")
Add(6,"gBFLBCJwBAEHhEJAEGg4BaAFg6AADACAxRDAMgBQKAAzQFAYZhxBaERiGIZ4JhUAIIRZGMQxXAcMQ1DICYRhQABRiUAoJDKMchxEKcPBmAiPZhjEYocheMoWSLIcijDD0eRRDyDZrjaL5ZgmHonQK/cI0VDMdRLHqXKApCYYeCaGgpSJRUI1HRgAS7CqVRpEWwbDgkNQwWTAdj2TSkEgNDQRaxjWZ6EgmO5TSjKYxSbJEQzpGSaIDwGZrfACRYEU7dVQxDQcNYbAYPJpwOh6LxWTZ2YjBGJ4FScPyrBLIYDFWCRHpqA5cZZOEQ2FYkRzXVy0JDzaCZQxCCQlQiIOjYLaUSRNFC+IZqMZhWw+FrGAbvIJbXakPZbVYSZ52AQuHcHY7lqAABhoDZllcEAxjwcCOD4GJbisGZPmmYQ1ggHIPg0dJnmCNYWG2D5OlkFYpmUPYaE6Xxzk+OxylAMZAHUHJGgGFBkAuBghjQcBQAEBAMEIExDCgNQWA2EIQiGahuFWIBhBYPwAnedReD+T5yjSGgekcMJ0ACCRiHiGgogqYoojYKYLmKSJCC6DBjEiTg2gyI4IlYOYNmKCIIHuCAUiieIlB8RQjHiTwxg8c4cmeEhkjkKhMhOZJpEYTYUmUCRSFKFRlgkXhahWJZJGYXYUiQYwaEMFIjmiPhhD0ThThYaIaiaGYuG6GxnAmMhyhuZw5kYdIdmcaZmHWHpngmch6hqZgYiIL4QA8M4MmOIRoHoGoIiKaIqDaCdXEoQoOiQaRKE6FokimChWhmJZogkAoCgoJADkSYQ4GoKoSiOKRqgqHoqimKpKiaLYqmqapGjCLJqnqVoyi2KxKhaHoJigOIAm8N5NnqfpBjALArBaRIxmwOwmkaMosgsLpOjMbQLDKUozm0OxGkKLpQDqAggDsTZTHaXI3i2Wx+mKOBuEuApmjibh7haaI6m6K42mmO5ukuQpujebYKnSfw6k2MxuniPovhubp+j8cALnMAo/nAPAHASQZwGwJwFkKcIMDMCo+m8Wxon8OhNhMZwUkWMRcF8GpGHGTBjB6RpxnwdwgkicgshcIZJnITIjCaRZxBiGhADoDRzGMMJMjMHJPDaTRzgyU2ynOPJnDyT5zm0Bw9lCdANBMQpMnKWB8n8OYNFMWxMlONJdD8UpUHUTRDFaVJ1H0VxYladYtHcWZXnWTYDF6U7QACZA0k0TYfGmWg2i2Nxsludo9kcbpcjcBsTw7RdDvA2KYeoux3h7GcNUWQxADgRFEGkOAXATgHGEPEDgPwKjDDiJwJ6ex4jcEeCEZI8R+CvBKMsOQnAXgAD+JwAweRQjOHmPwe4QRoj0C6C8IY0x6CdCOE0ag9ROhfC6NUOwHQ3hjGuPQDg2ReBmEyN0X4cxuB3C6O8PI3x7h+AeH0cIeAPAfEaOIfIHgTiVHGPkPwTw6jNE2IYLImR0D6D8JcVI6x9DeGeKsdo+1Fi1HcPwDw/xijvD4J8B4yx4j6E4NkWgZAMhfC+NsewfRviPHCPkfo/xXjlH2H4T4vx6j8H+J8Y4/B/DfH2P0Pozg2BsAYGESIAQwA8AMIECALgChAGwBMAY4AyAQECNAIwCggg4BaAQUAxAKiDBgF4AgORYisBiAYGgHxCAwEEBEIQWAkgJHCBwFIhBoCqAoEIXAXQFhhEICxIovgMjDAwER1ooBhAYEgOYDowxUB5AeOEegQRDixAcCAIgSBCgRDEEQI4iQovFCIJgTYEhwjjE2BoIYAAwhFBwKsCoIhaBZEWBENwKxijYFqBcUQ5AviMCiIYGQRgEDNAwOMHgZRFSwDQAscIgQNhjD4G4RwERnA5COFgcYHRxikDwI4aI5gfBHFwP0DwpACB9EgDEfwOJqQsAKPQQ4kQZAiCKEgbIGQRjkC4JESI0glBICSDkFoJQyDEEoJMKQXgmjJEyBR1oYBdAXEkIYKIygUhJBSOUGgqRKCyFcFQJQyQqgrDKIQV4lgpC6C0EsDKIBygjE2BkMQ4AujLFyHsF4JR6DBEwBMBwXxmBZEKDEUwJBjiZCmCYMwTBEidBkOYPgzRLywDIIsMIcwahmF4NYTYEw3BtCaNkWYNxzDkHAJsaYhg5BOByM0HApwiDlE6DMTwbJqCOBaAUXg7xPAzGEHkJ4WR0g9HOJwfInhpjqD4E8XI/QfhoAIPwUAUx/TFAyOR1oKBZAWFo8ac4GQhjoDqBEUItAnCICiEoEoRQ0DFAuKMKgWhHBRE0DsIw6AxibAwGIYAWRpA6CXYoGoKRSgUFcJMaQ2gqhLFSGUF4pgqDGE0FMBQbQmDpF6DUUksAwCKHCGMJ4aR+g+FQBUBwocRiDCiOoEoSBUDVBNkIXQnQpCqEKE0VQNQfCgBoJQYQkACj4FYBUeoZhWjVFULkK46h6hhFWLURwsArBKGKFkNYRQzitCqJoWwVhNDbCwJIAQgQriJASCIKodBAhdHWMUPIrwqjuF8FcbQ/QvjsAKIEIgCba5CEAI8SI1REhHEsC0Do2GwhjFYGUR4RwkD5BAAAAQAiAg==")
Add(10, "gBFLBCJwBAEHhEJAEGg4BRIGg6AADACAxRDAMgBQKAAzQFAYZhxBaERiGIZ4JhUAIIRZGMQxXAcMQ1DIDIRhQABSDUJYjSTJcIjKKASgFBIYRoASL5UhkMocRbNMySGKMexfBoZZQGIY4eDOM46TpNcB0VLNEQHEaeJ5jYYaFh6B46R5HdQQTD0fgAf6EbAjGoaUjCVYRV5HcbCNDQUxFLiEa6sKr4aiiJp2SpAcqXSAFdxHNS3YxEfAaNo6FZkV4MdAxDQdCgLQyaKYpSqZapuBJSWZCNCRDiksIAB5OGR3DYOSzHGDMIIsei7Jhqa4JaDAYqwTgcO5JAa5bjweIbXzyfJ+SrLN76dq+QQSEaERBuDIMEj0MaJZrDNbDMJbD8FZPgGcIBl4ZZXFGT5NHQjg+hiWxbh6BJbCAdZrHQDA5lyU5SnePwdn8C4DHyCrDlkYAHieDZvHWXIwAACSSGGPBjB0RwwjgYgbEcBRYBAQJEN8MoDlEYJZAkCgQhfGByhsYBhBYPwAnefRfCsSYhmwcwPEACIeCmCgiiiNgsguYo4kYLoMiMCJODaDRjgiUg6g2Y44mYKoJAeNpgACEAKFGdBSDuSAhi4SISiSGQuE6ExlAkMhShOZQ5EYVIVmUaRmFWFplgkchahKZBREoQIME8AgUG6GRmHmGhohqZopjYaYbmaSZCG6HBnEmTh2hyJ4JlYeYdmeKIqGQIhHCOQoAC8SoijaBIhigWgegqIhokoIoOiKaJ6DaEIkmkKhWhGJZpEoYoNiCKAaAIfoKg8EgwHWKBHFMBIvCwahqiKJ4qGqSoui6KorAqNoxiuawqlaNItmsOpmjbgx60UJ5igORIPB4LAhmCRgsksawekmMgsisNpMjObI7EaTo0i0CxOlaNRtgsUpajWbY7EKRYxGwhZyCSR5LgwfAyguApqmiOouhuLpujsbwLjKco7m8O5GnSPZvGuZp1j6b4LnKcY5i46pyCWB58AwfwzkuUp/AiQowhwLwOkMcQMDMEpDnEPBHBSRZxGwZwVkacYMHMEZBjA6pzCaCAsgyAg0kwEwPCiSoyhyLwukscwMjMMpLnMPJHDSTZzGyZw1k6c4MnMMeTmyCIdCETw9AyWAxgyDQfEmUmZDcTJTnSPRHE6VI1A0TxWlUdYNFMWpVnWPRDEWUQ0DuBJ0CgCIdgyCT6DMMxolqNodi8bpbHcDYzHKW53D2Rx0l2dxtmcdZeneBscw4xZhsG2BEJARgPCcAyYoDQPAfgTGIHELgbwMjHHiHwR4HRkhyA4J8Foyh5gcFODUZY8w+CHAWMIOD3h1BTEiP0DIHg5CaEMK8KI1Q6g9C+F0aw9gOhnDKNcewfRHhpG2PYbozw1jdHuB0c4Yxph0G6BEKgSRPC+AyNQNgmwvA/EmOQPIXg3iZHOecR4nXkgeE+K0dQ+wPCnFqOsfYfhDuFDw94dgVwJDfAyCw5Axh7jRHqH0H4Xxuj2H8B8M45R7j+D+I8dI+x/DfGeOsfo/wPjnHEPkT4MxxAWBEGQPYQAYjmBwIcDgBxAgwBEAUIA2CajgC4BEQI0AlAICCDgFoBQwDEAoIMKAXgGjBAQAtP4GhwgeHENAJwQgcBKByMcHA9xCgQFUBQYQuAugLDCIQFghgoRYGGBgNIDRwi0ByIYWA7gOBDGQGMBIIQZDhA+AIcAUAiA4EUDoI4SB8CJAiCoEgxBcCdAmGIQgTBFBRB8CkYoGBUgVHELQLIihYhuBYEUZAowIgiBoEIC4YhGB8CMDEeAOhjhcDOI0GIogahGGwNkDY4wuBxEaNEZQOAjg4HaB0MYxA6CPCiN4HoxwsDNAwNcBA+QLjiE0EEJAQRtA7COMwQ4kQZAiCKEgbIGQRjkUQJEaQSgkBJByC0EoZBiCUEmFILwTRkgJAOCEMgCBhAVCGOYKIDxIjcB2KUGgqBKDyFMFYJQuQugqFKIQVolgZC+CyEsLIaQWjlE4LkSw0h1BaCUFkIguAjjQGKBUWYBgwiPACOAHwpgaDIEwPMEwZgmC5E6DIUwhBmiaBmD4NITQsipBqOYTg2RNDTDUGcZgKREgwAMEgWAHwpiEiICEcoOQzg8HNQYVwdQnDZGmDsc4ZB4CdGmMYPQTwcjtB4KcYg9ZOi6DiM4FM2QjjYGYBYSgBhAiPCCOgHw6AagIFAPQE04BdAdCEKgQoDRRA0B8IkKIWgUhFHQJ0DIohqBqEONAFQCQgAGDwLcD4dBCB+AeGEdoSQ0g9BMKUCgrhKhSG0FMJY6QygwFKNQYxtAdBtCYKkYoNRTg0F1WIFQQrQDgGmBcKoBAugPGiPAHwKgahIFQPUEwpgqC6E6FIVQhQmiqBqD4VIVQtZlHUJ0LIqhqhqFONQJQiQoAGFgL4D4lcSiPEiPMLIawehmFaBUVwtQrDaGmFsdYZQ4CtGqMYXQVwdDtC4KsYodRXg1F0LEawKr6DoG0BgGwBAwCPHCPYHw7AaiIFgPYEwxgsC7A6GIVghRGiyBsD4ZIWQtgpDKOwTomRZDWDUMcbASwEhgAMOgYgHxbCED/lAfYaQ2g9eqBYVw1QtDbCmGsdoZRYC1GsMYbQWwdhtDYK0YotRbg2F0NEbQK8kBHHgOADA9wCBjEePsRocR3BFGSLkK4LhzBcG2J0OY7hCjR0eBIcQXAAjIBkMceo1xdg3DEO0Lo2xch3HcN0cIuxriKHgF4HYzQ8hvCKOQXoVxPD1G8JsZwnxJAiCMB8cYnAzhfB22IF4tR8i/AuO4fY3xtj1D+K8co/xgBYAOAIMADAGiAykAUXwyRCgxE2IQQAjwYCCB8MIJA9wFBhA4CsQg8BZA8GCKUQHbSAg==")
}
Background(0) = 33554432 '0x02BBGGRR
Background(1) = 50331648 '0x03BBGGRR
Background(8) = 67108864 '0x04BBGGRR
Background(9) = 67108864 '0x04BBGGRR
Background(10) = 100663296 '0x06BBGGRR
Background(11) = 100663296 '0x06BBGGRR
Background(12) = 100663296 '0x06BBGGRR
Background(13) = 100663296 '0x06BBGGRR
Background(14) = 100663296 '0x06BBGGRR
BackColor = RGB(255,255,255)
BackColorGroup = 167772160
BackColorGroup2 = RGB(198,207,247)
GroupAppearance = 7
ToolTipWidth = 154
GroupHeight = 36
Groups
{
Add("
Calendar ActiveX ( MSCAL.Calendar ) ")
{
CaptionFormat = 1
Alignment = 0
Image = "gBHJJGHA5MIgAEIe4AAAFhwQiAbCAbigbEsWGAlGA7Eo7HcbIowIpFHZQkZQKA7IsplErlBbLZFmEzLZlMpQmxbOE2mxwn06nZ7n0+PdFMtFOCFQp7pR7SFKQtPSFPTdTTdVq9ZTalralr1fWClWFjsi7s1nYtmYtrtjQt1vbdubdzujlublvF5eDleF9eD7v77fYBwmFw2HxGJxWLxmNx2PyGRyWTymVy2XzGZzWbzmdz2f0Gh0WjzsMAAhfIEAMMf4AFmmhOxAAI1r/BIcJBwcCEQYFG4ULjISG7BYQCr+bawALEAqJBozHyEPChYbFBwgISGZjYOAjY/XIqCHDRUQDZKCDYPNxETISYgLCogGCWHgIKKmY4NGpXWw4AJRGGAhGg4PJXB4YIqDIaZTA2RwZHIPI4GGBIKhURA1C6XIaBWKZLimB4TFwYBKFQJRTjKLZUDQaIZHYApNiaIY9CYOBYAGaZWCwLZuAIJZ4GEYJZDkfoTBAXA5BabYLjYJJ0G4PBqlYL5UgGHYwBqVh7nMRJUH+Ew2HQDI7nmcBBEkbIPDMTYKmIKJmggIIGFqdBLhCRBeEQaobBqRQdBqJxFkgBI7AgDodjcaJGgoS5xGcFooHqbQLkQHYflMJAIhIKJmFAPJbkQKJdFQMBAlSIZPFALp4FqbQMHANJuFyPwuHgVppmsAZeluQAIkGIoGA0FYhC8fBuCuPZwESIp6l0NB/n8PoGm4BYqlILosi0RIbA6PBwmiOABiiYh+kmCRAiYDJcA+QQEgcMpqCEMggiQTIvHaaIgDCPYUhgXBIDmPBWjKERBBYUh0A8RBHFyIxNDCRBemgDwFhSUgYXYExoEwIQwAaHQ0GsJoXiYJBRgSEQ+GgYIDhETBaiyR4BCqMgLjkBBTDAARHh4PJiHIIA/DacAQjwFgUESSAgiuHR6GeNYUkMFAvkwF4akyUgxjQUwUmgAgikKahTE2N5lBoc4gMIAAdoCA"
Height = 168
IndentGroupLeft = 18
Items
{
Dim h
h = InsertControlItem(,"MSCAL.Calendar")
ItemHeight( h ) = 168
ItemObject(h)
{
BackColor = RGB(198,207,247)
}
}
}
"
Mail"
{
CaptionFormat = 1
Expanded = True
Alignment = 0
Image = "gBHJJGHA5MIiAEIe4AAAFhwFIJpApWPoFNSbCAPB4QJhLCBWKoQNRpCB+V8lXIQRDDDQZDIaEYjDRMmR+PoaSSREsxEpgFolNQ3Ep0IIlSVFWKvF43G4vSRLF6dZovU7XF9Jq65HVMHSnJdda46WNhYrDIidJZPjpPkBPWJVtzhLK7uVlLLPYZkXbXMjFdZuB4ZNzFNJ5vx5Z7NxDrQZ+NKDYp9QbZa6OB4jRyIOaYSWbSR9TCxQ6YyijDItUaIPqjTurTqHUbZUqjcbhVuqVqnQ+5SKtdzrXEjXG6XCxSPFTa4cav5ThXDuZrCEYtYSxTbCXaR7HXYqvZoZG7NXabZrFUvlV7X83q9LP9q5a7Z+G/cUdcS7Uri+X6YbicZmnE352CCJZ2DoOZ2P/BJrnYdxwnuMAvnumx7kQQ57pye5Ok2e5TlKe5dlye6ynuxJ7t+AMUxVFcWRbF0XxhGMZRnGkaxtG8cRzHUdx5HsfR/IEgyFIciIYAAQnyAgAoYf4ABZIyEyiAAESaf4Eg4JBYFAYJBgQBYTCQUAQFCIZDgUCRWCiWYTGCYZFgICpWGyDAzFEIpDgWA4aCYdAwiaTAWhOYZCAyAApEaJYagWB4HCQRIJDKDBMAQEotCiQYiEUTQaA+GZXFSHIwEADRKBYBolCoMZilOCYSCWQQFEoRApCWaRMg2UoFA4YBClOSpTDUUgABKTAgGaZJSC2JpXCCfYnnEDQVgWaocFieQKHaQAWhMOIHCYIDZioUYrCcLg4mCKBFEmWI0imBQUBwMAGk2WopzWWJBAGIYuBSIJ3nEaodngNxjkURpZk8dA4hEYphAsQ4fhsIwEkyVgkl4DZvjcJJAGCYoBgYAYJE4JJpnEFRLhaTYZh+VxcnKO54hoBA5BeChoCEVh1BqYwdhUc4EF4HB4BWLY7EMJgAHMM53lobBAmOf5vCwXp+DeFwvmmUgcmmQRbgmGhnkaT4Pi0fwyHyV5aBifguBEe59itotzCKK4gk4eIhjye5giqTYyhaWhYCMDQ2AyApugsKhSHiKYNB+WAAjAOoviyWJggiAJNEMQwJicJBKkACZ0FaCICCKdR+hgC4ugQMAwTgLYQEAIYJCOcBzHAB4tACMxijcFxOhiIgFjUEhIkABYNBQGBrgMDRcDgAQBF0SpUGoKY1n4OHnjMBh4mGCQrBAOBJAoE4wCAIoBA2EAADKAQWngFBJi4H4GEicoIASUgwgKAYI41B0vTH4C0SgwAEBoBAGYaAAAiACBqAQTgPwICZGAGgUhPRCBLCW/0IgCQdBoCLA0Cwqh4iDAcOoXIpBUAJA2GwGAgAwgkFsNcQQpAFClCiIIDQpxRDmAIEwDARBVDoFUKsfwQRgBWCEAkUA8RJhLCcBgAw1whA/FYNETwEwSiQE0FMAQSxUC6EMGEH4sRbgoEeLMMQxA1h7BwMgIoohUgxDCJQKYbhlDpGyKwWo3A7DrHaLccAhgVjuCAikAAOyAgA=="
IndentGroupLeft = 18
AutoHeight = True
BeginUpdate
ExpandOnSearch = True
BackColorList = RGB(255,255,255)
BorderColor = RGB(198,207,247)
Indent = 12
HasLines = -1
HasButtons = 2
LinesAtRoot = -1
FullRowSelect = False
'SelBackColor = RGB(198,207,247)
SelBackColor = 67108864 '0x04BBGGRR
SelForeColor = RGB(0,0,0)
ShowFocusRect = False
Columns
{
Item(0)
{
Caption = "Organizer"
}
}
Items
{
Dim h, h1, h2
h = AddItem("Inbox (23)")
CellCaptionFormat(h,0) = 1
CellImages(h,0) = "1,2"
CellToolTip(h,0) = "An Inbox is a file in which mail is delivered by the operating system.
Exontrol's ExplorerBar"
CellPicture(h,0) = "gBHJJGHA5MIqAAXAD3AENhozhpmhqZhrMhr/h0QGcQM0QTMQZkQf8QAESGcSM0STMSZkSf8SAEUGcUM0UTMUZkUf8UAEWGcWM0WTMWZkWf8WAEYGcYM0YTMYZkYf8Yh8ak0yn1KAEbrkdmcbkNLjcljcdlMzjstpcdmMbj81mcfnNLj89sEnkNDn8ho8ijcjpszkdRpcjiMclE0oFMrdes9woMnwEls0plMroMpl8qjuYlc3oMrncstMpltDoMto8ujubl9PoMvqcwusrmM2oVOrcftFxmd5kc0t+ez+n1+3uM1m83nNPm89uUr5s5otPnNJj+jnfOqNPncVkEsnFEqFbsNqudFn+DkshzOh1OxoMxvOn6fUndEkNF1NDoqiqOoy+NUnMAqOqakMMl7sKSoypK2ka1ropa+JGpjANc0TVNkmLgte7aju8p6esGl7uqjAEDqTCzZJ3BCpxgh0ZRnGkaxtG8cRzHUdx5HqHBCfICAChprgAFkZIQhQAAQjBXgSDgkFgUBgkGBAJg0fhTlgUJhkGGQHBgDh8CeERggqB4Zg8BBqDKMRiiyf4YC8fZ7ieIxgkSDIEgMIBSGMJZkj+RBrEgVIcAkUgkkCFgyFAJg8naIAHBkNYVA4SAUhmQBiAAR4JA6YAUBGY5RgGG4pg8DBdAMZAIhADhrDILoZhWQANBANYHBwHAADoJpREkA5GA0KAsBiY5NBkI1LBiORCAGA4RiADx+hQKZKkYJ5fCAU4dDgahVGXMwJE6QQCj2UBhE0UAHGscgUEmIZXGqVQ1kcIg/CYcwIlEToBGiZwlHoPAYkEAYwBWHAUHGABAkGZA5HSDwQnGQBhiqTIpgiKweEAdBonGGQDi4E45DAIJGkGZI+A6dBsAUAggnMEY1mMFRaAkEAAGgXh/k8cw4CgQIGEEDgdGoQhlhKAZ7GiexViMYRBBsXBhBiCAQGAEpPjsBhqgCDJrAqJx1lQKAAnYdhYBYWBymKMY3myU5jDSaAOlAIYsjGNpzkAAIc5iK4MkeZAwEACpdB6KRLCqH4gAOYgzFecpIA0LIyHIOAgAgIhkkIJAABEDJiE2N4xgaCpCDwMgACqcQBgcUgbmGEZHigUwDAyCoMCqKIAF0OpgkEIgoAKeBH9qchihGJgCCkLAojeKQjEqKAkAMWlDiyWY+DMKgLl8SJAgGSIjBCGRlgYdZ4iIKQiDWRpCEQJYDgYWhKESHgQkIEhDFCm8aAUg0jWDyA0Twch9ApHQKAQgFgtBQCAAAHZAQ="
ItemHeight(h) = 26
h1 = InsertItem(h,,"Unread Email (11)")
CellCaptionFormat(h1,0) = 1
CellImage(h1,0) = 2
h1 = InsertItem(h,,"To Follow Up (7)")
CellCaptionFormat(h1,0) = 1
CellImage(h1,0) = 3
h2 = InsertItem(h,,"My Folders")
CellImage(h2,0) = 2
h1 = InsertItem(h2,,"Info (128)")
CellImage(h1,0) = 2
h1 = InsertItem(h2,,"Personal (59)")
CellImage(h1,0) = 3
h1 = InsertItem(h2,,"Programming (159)")
CellImage(h1,0) = 1
h1 = InsertItem(h,,"Draft (0)")
CellCaptionFormat(h1,0) = 1
CellImage(h1,0) = 1
h1 = InsertItem(h,,"OutBox")
CellImage(h1,0) = 2
h1 = InsertItem(h,,"SentItems")
CellImage(h1,0) = 3
h1 = InsertItem(h,,"Deleted Items")
CellImage(h1,0) = 4
}
EndUpdate
}
Add("
Contacts (6)")
{
Expanded = True
CaptionFormat = 1
Alignment = 0
AutoHeight = True
Image = "gBHJJGHA5MIgAEIe4AAAFhwQiAbCAFDcVEolCEXEowjg7GAbHY7CEhHZFkRFlBQIoQKEtLZQCEvIsvKBbmxlnBwnR7OAlnhbnhwPdDQp7EtFPaFQo7pSFSFLSFRTdFTaQHdVItVQqbTZbriQribUtdsdiUpwUtpWCwItrOFrWC7WBwuSbXd3YqlQrFXaQviwvi7YrFv2DaCwSGHTbQXalaDFWDQaGLyTbaCFyzFyzQbbbUudbblvLlcq70jF0jleF5eGMeDbXevYrwcrQeGt27b27wfe13rbfe0ffB4b7APH5HJ5XL5nN53P6HR6XT6nV63X7HZ7Xb7nd73f8Hh8Xj8nfhgAEL5AgBhj/AAs88J+QABHuf4JDhIOCCQgJCYXBIEhkFgUIhkCAwSkgLAglEcRCEOBwGjUHg0BgYQCAuHQ6FwOBAiEARjkGFAXgcSh4CGA5GkuGgjFEXBQDGJAlkiEgXP0WIBAKBQJB8K4kCwDI5lIKILg6NBaHIaIRhMYoGgkPorBIaIgnKH5LBIPYlDqVJ6hOKpCgiEg2HQIA7AGKhRB4WZdGwWAYlEQgEDgDZCCaXBwkEZxKh+JB9HIRJBBaIRJjgAZhhqVJYFcKoEiKK40FKJAxCGbgDEgEYhkcEA7mELJAgkIgDEqfQqgERRPFAH59nYCBAhoIRaB8HJLkaQAhGOB5Nh+LxjmsGIAgKdIEBWGo/msJRKjaZoPiQSAGCCEQyGQCANAmIgrCKZYrjUA5ZgkKwGBCSJCEIRYSD6JJ+HwDBNkIZRmB6U4nH+PpPC4JBJBAJJnBGPImnGYQFGuHhDhEaxtlqGIqHSPpInoUpYkCYgIF2BQijoConHGHoziuOQkhBcYIAUXwzA4JIDE8GwviKDpECuK4CBcfhYACIpqnia5vjYGhsBsagCBoFBjC2LIFGiUACAkJRMGOMA2BsYILHEkxCgOSg+guMxsAwBoKhUIIBWMOpwGECAXC4IhRDaMgqiQKxAB0Eh4k0CBgASeJxAeI4aGiQYHCELpSkwK4kjsMALkMDR/Gwb4FGqepqkCNo8gyZIJiqAwPDwCAGiSBholEOJzHqaAiDYHoGECUo+BIWJ8k4LIwHSNALAaRoalsawsBWegoHIH4PnCLArkAA4aiybiWGMMxUgcHouEyconB+UJ0BMTBDG0a5rgKDooGoQIkDUbQ7iCLoLj0IgBkWSxnDCOwpimK5LFIUo2gAXQUkuOhGh6LcSwbQkBtDABsVQVxIhgGkLEQAQQrCeFKHoZw6gpBTB0NgZQ6AxiSCaLYAQcAjgcCiAQCYRQaBRCIA8b49gQBDAeCgLCYBRg0HgMAIYER1jKHAO42ISg9guFGG4UIZApBEAQP0Go1BeD8DEBQCAAAdkB"
IndentGroupLeft = 18
Expanded = True
BackColorList = RGB(255,255,255)
BorderColor = RGB(198,207,247)
BeginUpdate
HeaderVisible = True
HeaderAppearance = 6
' BackColorHeader = RGB(198,207,247)
FilterBarBackColor = 16777216 '0x01BBGGRR
FilterBarForeColor = RGB(255,255,255)
BackColorHeader = 16777216 '0x01BBGGRR
ForeColorHeader = RGB(255,255,255)
BackColorLevelHeader = RGB(255,255,255)
DrawGridLines = -1
' SelBackColor = RGB(198,207,247)
SelBackColor = 67108864 '0x04BBGGRR
SelForeColor = RGB(0,0,0)
ShowFocusRect = False
MarkSearchColumn = False
AllowEdit = True
TreeColumnIndex = -1
Columns
{
Item(0)
{
Caption = "Name"
Width = 130
DisplayFilterButton = True
DisplayFilterDate = True
}
Add("Phone")
{
Width = 100
}
1
{
AllowSizing = False
HTMLCaption = "1 First"
Def(0) = True
LevelKey = 1
Width = 25
Alignment = 1
}
2
{
AllowSizing = False
HTMLCaption = "2 Second"
Def(0) = True
LevelKey = 1
Width = 25
Alignment = 1
}
3
{
AllowSizing = False
HTMLCaption = "3 Third"
Def(0) = True
LevelKey = 1
Width = 25
PartialCheck = True
Alignment = 1
}
""
{
LevelKey = 1
Width = 20
}
}
Items
{
Dim h
h = AddItem("Mihai Filimon")
CellCaptionFormat(h,0) = 1
CellCaption(h,1) = "744-845287"
h = AddItem("Dean Thomas")
CellCaptionFormat(h,0) = 1
CellCaption(h,1) = "928-120203"
h = AddItem("Dave Nichols")
CellCaptionFormat(h,0) = 1
CellMerge(h,1) = 2
CellCaption(h,1) = "121-121901"
h = AddItem("Brian Thompson")
CellBackColor(h,1) = 83886080
CellCaptionFormat(h,0) = 1
CellCaption(h,1) = "234-129011"
h = AddItem("Alex Antolini")
CellCaptionFormat(h,0) = 1
CellCaption(h,1) = "234-12112"
CellHAlignment(h,0) = 1
CellMerge(h,0) = 1
SortChildren(,0)
}
EndUpdate
}
Add("
Tasks")
{
CaptionFormat = 1
BackColorList = RGB(255,255,255)
BorderColor = RGB(198,207,247)
IndentGroupLeft = 18
Alignment = 0
Image = "gBHJJGHA5MIqAAXAD3AENhozhpmhqZhrMhr/h0QGcQM0QTMQZkQf8QAESGcSM0STMSZkSf8SAEUGcUM0UTMUZkUf8UAEWGcWM0WTMWZkWf8WAEYGcYM0YTMYZkYf8Yh8ak0yn1KAEbrkdmcbkNLjcljcdlMzjstpcdmMbj81mcfnNLj89sEnkNDn8ho8ijcjpszkdRpcjiMclE0oFMrdes9woMnwEls0plMroMpl8qjuYlc3oMrncstMpltDoMto8ujubl9PoMvqcwusrmM2oVOrcftFxmd5kc0t+ez+n1+3uM1m83nNPm89uUr5s5otPnNJj+jnfOqNPncVkEsnFEqFbsNqudFn+DkshzOh1OxoMxvOn6fUndEkNF1NDoqiqOoy+NUnMAqOqakMMl7sKSoypK2ka1ropa+JGpjANc0TVNkmLgte7aju8p6esGl7uqjAEDqTCzZJ3BCpxgh0ZRnGkaxtG8cRzHUdx5HqHBCfICAChprgAFkZIQhQAAQjBXgSDgkFgUBgkGBAJg0fhTlgUJhkGGQHBgDh8CeERggqB4Zg8BBqDKMRiiyf4YC8fZ7ieIxgkSDIEgMIBSGMJZkj+RBrEgVIcAkUgkkCFgyFAJg8naIAHBkNYVA4SAUhmQBiAAR4JA6YAUBGY5RgGG4pg8DBdAMZAIhADhrDILoZhWQANBANYHBwHAADoJpREkA5GA0KAsBiY5NBkI1LBiORCAGA4RiADx+hQKZKkYJ5fCAU4dDgahVGXMwJE6QQCj2UBhE0UAHGscgUEmIZXGqVQ1kcIg/CYcwIlEToBGiZwlHoPAYkEAYwBWHAUHGABAkGZA5HSDwQnGQBhiqTIpgiKweEAdBonGGQDi4E45DAIJGkGZI+A6dBsAUAggnMEY1mMFRaAkEAAGgXh/k8cw4CgQIGEEDgdGoQhlhKAZ7GiexViMYRBBsXBhBiCAQGAEpPjsBhqgCDJrAqJx1lQKAAnYdhYBYWBymKMY3myU5jDSaAOlAIYsjGNpzkAAIc5iK4MkeZAwEACpdB6KRLCqH4gAOYgzFecpIA0LIyHIOAgAgIhkkIJAABEDJiE2N4xgaCpCDwMgACqcQBgcUgbmGEZHigUwDAyCoMCqKIAF0OpgkEIgoAKeBH9qchihGJgCCkLAojeKQjEqKAkAMWlDiyWY+DMKgLl8SJAgGSIjBCGRlgYdZ4iIKQiDWRpCEQJYDgYWhKESHgQkIEhDFCm8aAUg0jWDyA0Twch9ApHQKAQgFgtBQCAAAHZAQ="
Expanded = True
AutoHeight = True
BeginUpdate
TreeColumnIndex = -1
FullRowSelect = False
' SelBackColor = RGB(198,207,247)
' SelForeColor = RGB(0,0,0)
SelBackColor = 67108864 '0x04BBGGRR
SelForeColor = RGB(0,0,0)
ShowFocusRect = False
Columns
{
Item(0)
{
Alignment = 1
}
}
Items
{
Dim h
h = AddItem("no tasks")
}
EndUpdate
}
}
EndUpdate
On Windows XP, the following table shows how the common controls are broken into parts and states:
| Control/ClassName | Part | States |
|---|---|---|
| BUTTON | BP_CHECKBOX = 3 | CBS_UNCHECKEDNORMAL = 1 CBS_UNCHECKEDHOT = 2 CBS_UNCHECKEDPRESSED = 3 CBS_UNCHECKEDDISABLED = 4 CBS_CHECKEDNORMAL = 5 CBS_CHECKEDHOT = 6 CBS_CHECKEDPRESSED = 7 CBS_CHECKEDDISABLED = 8 CBS_MIXEDNORMAL = 9 CBS_MIXEDHOT = 10 CBS_MIXEDPRESSED = 11 CBS_MIXEDDISABLED = 12 |
| BP_GROUPBOX = 4 | GBS_NORMAL = 1 GBS_DISABLED = 2 | |
| BP_PUSHBUTTON = 1 | PBS_NORMAL = 1 PBS_HOT = 2 PBS_PRESSED = 3 PBS_DISABLED = 4 PBS_DEFAULTED = 5 | |
| BP_RADIOBUTTON = 2 | RBS_UNCHECKEDNORMAL = 1 RBS_UNCHECKEDHOT = 2 RBS_UNCHECKEDPRESSED = 3 RBS_UNCHECKEDDISABLED = 4 RBS_CHECKEDNORMAL = 5 RBS_CHECKEDHOT = 6 RBS_CHECKEDPRESSED = 7 RBS_CHECKEDDISABLED = 8 | |
| BP_USERBUTTON = 5 | ||
| CLOCK | CLP_TIME = 1 | CLS_NORMAL = 1 |
| COMBOBOX | CP_DROPDOWNBUTTON = 1 | CBXS_NORMAL = 1 CBXS_HOT = 2 CBXS_PRESSED = 3 CBXS_DISABLED = 4 |
| EDIT | EP_CARET = 2 | |
| EP_EDITTEXT = 1 | ETS_NORMAL = 1 ETS_HOT = 2 ETS_SELECTED = 3 ETS_DISABLED = 4 ETS_FOCUSED = 5 ETS_READONLY = 6 ETS_ASSIST = 7 | |
| EXPLORERBAR | EBP_HEADERBACKGROUND = 1 | |
| EBP_HEADERCLOSE = 2 | EBHC_NORMAL = 1 EBHC_HOT = 2 EBHC_PRESSED = 3 | |
| EBP_HEADERPIN = 3 | EBHP_NORMAL = 1 EBHP_HOT = 2 EBHP_PRESSED = 3 EBHP_SELECTEDNORMAL = 4 EBHP_SELECTEDHOT = 5 EBHP_SELECTEDPRESSED = 6 | |
| EBP_IEBARMENU = 4 | EBM_NORMAL = 1 EBM_HOT = 2 EBM_PRESSED = 3 | |
| EBP_NORMALGROUPBACKGROUND = 5 | ||
| EBP_NORMALGROUPCOLLAPSE = 6 | EBNGC_NORMAL = 1 EBNGC_HOT = 2 EBNGC_PRESSED = 3 | |
| EBP_NORMALGROUPEXPAND = 7 | EBNGE_NORMAL = 1 EBNGE_HOT = 2 EBNGE_PRESSED = 3 | |
| EBP_NORMALGROUPHEAD = 8 | ||
| EBP_SPECIALGROUPBACKGROUND = 9 | ||
| EBP_SPECIALGROUPCOLLAPSE = 10 | EBSGC_NORMAL = 1 EBSGC_HOT = 2 EBSGC_PRESSED = 3 | |
| EBP_SPECIALGROUPEXPAND = 11 | EBSGE_NORMAL = 1 EBSGE_HOT = 2 EBSGE_PRESSED = 3 | |
| EBP_SPECIALGROUPHEAD = 12 | ||
| HEADER | HP_HEADERITEM = 1 | HIS_NORMAL = 1 HIS_HOT = 2 HIS_PRESSED = 3 |
| HP_HEADERITEMLEFT = 2 | HILS_NORMAL = 1 HILS_HOT = 2 HILS_PRESSED = 3 | |
| HP_HEADERITEMRIGHT = 3 | HIRS_NORMAL = 1 HIRS_HOT = 2 HIRS_PRESSED = 3 | |
| HP_HEADERSORTARROW = 4 | HSAS_SORTEDUP = 1 HSAS_SORTEDDOWN = 2 | |
| LISTVIEW | LVP_EMPTYTEXT = 5 | |
| LVP_LISTDETAIL = 3 | ||
| LVP_LISTGROUP = 2 | ||
| LVP_LISTITEM = 1 | LIS_NORMAL = 1 LIS_HOT = 2 LIS_SELECTED = 3 LIS_DISABLED = 4 LIS_SELECTEDNOTFOCUS = 5 | |
| LVP_LISTSORTEDDETAIL = 4 | ||
| MENU | MP_MENUBARDROPDOWN = 4 | MS_NORMAL = 1 MS_SELECTED = 2 MS_DEMOTED = 3 |
| MP_MENUBARITEM = 3 | MS_NORMAL = 1 MS_SELECTED = 2 MS_DEMOTED = 3 | |
| MP_CHEVRON = 5 | MS_NORMAL = 1 MS_SELECTED = 2 MS_DEMOTED = 3 | |
| MP_MENUDROPDOWN = 2 | MS_NORMAL = 1 MS_SELECTED = 2 MS_DEMOTED = 3 | |
| MP_MENUITEM = 1 | MS_NORMAL = 1 MS_SELECTED = 2 MS_DEMOTED = 3 | |
| MP_SEPARATOR = 6 | MS_NORMAL = 1 MS_SELECTED = 2 MS_DEMOTED = 3 | |
| MENUBAND | MDP_NEWAPPBUTTON = 1 | MDS_NORMAL = 1 MDS_HOT = 2 MDS_PRESSED = 3 MDS_DISABLED = 4 MDS_CHECKED = 5 MDS_HOTCHECKED = 6 |
| MDP_SEPERATOR = 2 | ||
| PAGE | PGRP_DOWN = 2 | DNS_NORMAL = 1 DNS_HOT = 2 DNS_PRESSED = 3 DNS_DISABLED = 4 |
| PGRP_DOWNHORZ = 4 | DNHZS_NORMAL = 1 DNHZS_HOT = 2 DNHZS_PRESSED = 3 DNHZS_DISABLED = 4 | |
| PGRP_UP = 1 | UPS_NORMAL = 1 UPS_HOT = 2 UPS_PRESSED = 3 UPS_DISABLED = 4 | |
| PGRP_UPHORZ = 3 | UPHZS_NORMAL = 1 UPHZS_HOT = 2 UPHZS_PRESSED = 3 UPHZS_DISABLED = 4 | |
| PROGRESS | PP_BAR = 1 | |
| PP_BARVERT = 2 | ||
| PP_CHUNK = 3 | ||
| PP_CHUNKVERT = 4 | ||
| REBAR | RP_BAND = 3 | |
| RP_CHEVRON = 4 | CHEVS_NORMAL = 1 CHEVS_HOT = 2 CHEVS_PRESSED = 3 | |
| RP_CHEVRONVERT = 5 | ||
| RP_GRIPPER = 1 | ||
| RP_GRIPPERVERT = 2 | ||
| SCROLLBAR | SBP_ARROWBTN = 1 | ABS_DOWNDISABLED, ABS_DOWNHOT, ABS_DOWNNORMAL, ABS_DOWNPRESSED, ABS_UPDISABLED, ABS_UPHOT, ABS_UPNORMAL, ABS_UPPRESSED, ABS_LEFTDISABLED, ABS_LEFTHOT, ABS_LEFTNORMAL, ABS_LEFTPRESSED, ABS_RIGHTDISABLED, ABS_RIGHTHOT, ABS_RIGHTNORMAL, ABS_RIGHTPRESSED |
| SBP_GRIPPERHORZ = 8 | ||
| SBP_GRIPPERVERT = 9 | ||
| SBP_LOWERTRACKHORZ = 4 | SCRBS_NORMAL = 1 SCRBS_HOT = 2 SCRBS_PRESSED = 3 SCRBS_DISABLED = 4 | |
| SBP_LOWERTRACKVERT = 6 | SCRBS_NORMAL = 1 SCRBS_HOT = 2 SCRBS_PRESSED = 3 SCRBS_DISABLED = 4 | |
| SBP_THUMBBTNHORZ = 2 | SCRBS_NORMAL = 1 SCRBS_HOT = 2 SCRBS_PRESSED = 3 SCRBS_DISABLED = 4 | |
| SBP_THUMBBTNVERT = 3 | SCRBS_NORMAL = 1 SCRBS_HOT = 2 SCRBS_PRESSED = 3 SCRBS_DISABLED = 4 | |
| SBP_UPPERTRACKHORZ = 5 | SCRBS_NORMAL = 1 SCRBS_HOT = 2 SCRBS_PRESSED = 3 SCRBS_DISABLED = 4 | |
| SBP_UPPERTRACKVERT = 7 | SCRBS_NORMAL = 1 SCRBS_HOT = 2 SCRBS_PRESSED = 3 SCRBS_DISABLED = 4 | |
| SBP_SIZEBOX = 10 | SZB_RIGHTALIGN = 1 SZB_LEFTALIGN = 2 | |
| SPIN | SPNP_DOWN = 2 | DNS_NORMAL = 1 DNS_HOT = 2 DNS_PRESSED = 3 DNS_DISABLED = 4 |
| SPNP_DOWNHORZ = 4 | DNHZS_NORMAL = 1 DNHZS_HOT = 2 DNHZS_PRESSED = 3 DNHZS_DISABLED = 4 | |
| SPNP_UP = 1 | UPS_NORMAL = 1 UPS_HOT = 2 UPS_PRESSED = 3 UPS_DISABLED = 4 | |
| SPNP_UPHORZ = 3 | UPHZS_NORMAL = 1 UPHZS_HOT = 2 UPHZS_PRESSED = 3 UPHZS_DISABLED = 4 | |
| STARTPANEL | SPP_LOGOFF = 8 | |
| SPP_LOGOFFBUTTONS = 9 | SPLS_NORMAL = 1 SPLS_HOT = 2 SPLS_PRESSED = 3 | |
| SPP_MOREPROGRAMS = 2 | ||
| SPP_MOREPROGRAMSARROW = 3 | SPS_NORMAL = 1 SPS_HOT = 2 SPS_PRESSED = 3 | |
| SPP_PLACESLIST = 6 | ||
| SPP_PLACESLISTSEPARATOR = 7 | ||
| SPP_PREVIEW = 11 | ||
| SPP_PROGLIST = 4 | ||
| SPP_PROGLISTSEPARATOR = 5 | ||
| SPP_USERPANE = 1 | ||
| SPP_USERPICTURE = 10 | ||
| STATUS | SP_GRIPPER = 3 | |
| SP_PANE = 1 | ||
| SP_GRIPPERPANE = 2 | ||
| TAB | TABP_BODY = 10 | |
| TABP_PANE = 9 | ||
| TABP_TABITEM = 1 | TIS_NORMAL = 1 TIS_HOT = 2 TIS_SELECTED = 3 TIS_DISABLED = 4 TIS_FOCUSED = 5 | |
| TABP_TABITEMBOTHEDGE = 4 | TIBES_NORMAL = 1 TIBES_HOT = 2 TIBES_SELECTED = 3 TIBES_DISABLED = 4 TIBES_FOCUSED = 5 | |
| TABP_TABITEMLEFTEDGE = 2 | TILES_NORMAL = 1 TILES_HOT = 2 TILES_SELECTED = 3 TILES_DISABLED = 4 TILES_FOCUSED = 5 | |
| TABP_TABITEMRIGHTEDGE = 3 | TIRES_NORMAL = 1 TIRES_HOT = 2 TIRES_SELECTED = 3 TIRES_DISABLED = 4 TIRES_FOCUSED = 5 | |
| TABP_TOPTABITEM = 5 | TTIS_NORMAL = 1 TTIS_HOT = 2 TTIS_SELECTED = 3 TTIS_DISABLED = 4 TTIS_FOCUSED = 5 | |
| TABP_TOPTABITEMBOTHEDGE = 8 | TTIBES_NORMAL = 1 TTIBES_HOT = 2 TTIBES_SELECTED = 3 TTIBES_DISABLED = 4 TTIBES_FOCUSED = 5 | |
| TABP_TOPTABITEMLEFTEDGE = 6 | TTILES_NORMAL = 1 TTILES_HOT = 2 TTILES_SELECTED = 3 TTILES_DISABLED = 4 TTILES_FOCUSED = 5 | |
| TABP_TOPTABITEMRIGHTEDGE = 7 | TTIRES_NORMAL = 1 TTIRES_HOT = 2 TTIRES_SELECTED = 3 TTIRES_DISABLED = 4 TTIRES_FOCUSED = 5 | |
| TASKBAND | TDP_GROUPCOUNT = 1 | |
| TDP_FLASHBUTTON = 2 | ||
| TDP_FLASHBUTTONGROUPMENU = 3 | ||
| TASKBAR | TBP_BACKGROUNDBOTTOM = 1 | |
| TBP_BACKGROUNDLEFT = 4 | ||
| TBP_BACKGROUNDRIGHT = 2 | ||
| TBP_BACKGROUNDTOP = 3 | ||
| TBP_SIZINGBARBOTTOM = 5 | ||
| TBP_SIZINGBARBOTTOMLEFT = 8 | ||
| TBP_SIZINGBARRIGHT = 6 | ||
| TBP_SIZINGBARTOP = 7 | ||
| TOOLBAR | TP_BUTTON = 1 | TS_NORMAL = 1 TS_HOT = 2 TS_PRESSED = 3 TS_DISABLED = 4 TS_CHECKED = 5 TS_HOTCHECKED = 6 |
| TP_DROPDOWNBUTTON = 2 | TS_NORMAL = 1 TS_HOT = 2 TS_PRESSED = 3 TS_DISABLED = 4 TS_CHECKED = 5 TS_HOTCHECKED = 6 | |
| TP_SPLITBUTTON = 3 | TS_NORMAL = 1 TS_HOT = 2 TS_PRESSED = 3 TS_DISABLED = 4 TS_CHECKED = 5 TS_HOTCHECKED = 6 | |
| TP_SPLITBUTTONDROPDOWN = 4 | TS_NORMAL = 1 TS_HOT = 2 TS_PRESSED = 3 TS_DISABLED = 4 TS_CHECKED = 5 TS_HOTCHECKED = 6 | |
| TP_SEPARATOR = 5 | TS_NORMAL = 1 TS_HOT = 2 TS_PRESSED = 3 TS_DISABLED = 4 TS_CHECKED = 5 TS_HOTCHECKED = 6 | |
| TP_SEPARATORVERT = 6 | TS_NORMAL = 1 TS_HOT = 2 TS_PRESSED = 3 TS_DISABLED = 4 TS_CHECKED = 5 TS_HOTCHECKED = 6 | |
| TOOLTIP | TTP_BALLOON = 3 | TTBS_NORMAL = 1 TTBS_LINK = 2 |
| TTP_BALLOONTITLE = 4 | TTBS_NORMAL = 1 TTBS_LINK = 2 | |
| TTP_CLOSE = 5 | TTCS_NORMAL = 1 TTCS_HOT = 2 TTCS_PRESSED = 3 | |
| TTP_STANDARD = 1 | TTSS_NORMAL = 1 TTSS_LINK = 2 | |
| TTP_STANDARDTITLE = 2 | TTSS_NORMAL = 1 TTSS_LINK = 2 | |
| TRACKBAR | TKP_THUMB = 3 | TUS_NORMAL = 1 TUS_HOT = 2 TUS_PRESSED = 3 TUS_FOCUSED = 4 TUS_DISABLED = 5 |
| TKP_THUMBBOTTOM = 4 | TUBS_NORMAL = 1 TUBS_HOT = 2 TUBS_PRESSED = 3 TUBS_FOCUSED = 4 TUBS_DISABLED = 5 | |
| TKP_THUMBLEFT = 7 | TUVLS_NORMAL = 1 TUVLS_HOT = 2 TUVLS_PRESSED = 3 TUVLS_FOCUSED = 4 TUVLS_DISABLED = 5 | |
| TKP_THUMBRIGHT = 8 | TUVRS_NORMAL = 1 TUVRS_HOT = 2 TUVRS_PRESSED = 3 TUVRS_FOCUSED = 4 TUVRS_DISABLED = 5 | |
| TKP_THUMBTOP = 5 | TUTS_NORMAL = 1 TUTS_HOT = 2 TUTS_PRESSED = 3 TUTS_FOCUSED = 4 TUTS_DISABLED = 5 | |
| TKP_THUMBVERT = 6 | TUVS_NORMAL = 1 TUVS_HOT = 2 TUVS_PRESSED = 3 TUVS_FOCUSED = 4 TUVS_DISABLED = 5 | |
| TKP_TICS = 9 | TSS_NORMAL = 1 | |
| TKP_TICSVERT = 10 | TSVS_NORMAL = 1 | |
| TKP_TRACK = 1 | TRS_NORMAL = 1 | |
| TKP_TRACKVERT = 2 | TRVS_NORMAL = 1 | |
| TRAYNOTIFY | TNP_ANIMBACKGROUND = 2 | |
| TNP_BACKGROUND = 1 | ||
| TREEVIEW | TVP_BRANCH = 3 | |
| TVP_GLYPH = 2 | GLPS_CLOSED = 1 GLPS_OPENED = 2 | |
| TVP_TREEITEM = 1 | TREIS_NORMAL = 1 TREIS_HOT = 2 TREIS_SELECTED = 3 TREIS_DISABLED = 4 TREIS_SELECTEDNOTFOCUS = 5 | |
| WINDOW | WP_CAPTION = 1 | CS_ACTIVE = 1 CS_INACTIVE = 2 CS_DISABLED = 3 |
| WP_CAPTIONSIZINGTEMPLATE = 30 | ||
| WP_CLOSEBUTTON = 18 | CBS_NORMAL = 1 CBS_HOT = 2 CBS_PUSHED = 3 CBS_DISABLED = 4 | |
| WP_DIALOG = 29 | ||
| WP_FRAMEBOTTOM = 9 | FS_ACTIVE = 1 FS_INACTIVE = 2 | |
| WP_FRAMEBOTTOMSIZINGTEMPLATE = 36 | ||
| WP_FRAMELEFT = 7 | FS_ACTIVE = 1 FS_INACTIVE = 2 | |
| WP_FRAMELEFTSIZINGTEMPLATE = 32 | ||
| WP_FRAMERIGHT = 8 | FS_ACTIVE = 1 FS_INACTIVE = 2 | |
| WP_FRAMERIGHTSIZINGTEMPLATE = 34 | ||
| WP_HELPBUTTON = 23 | HBS_NORMAL = 1 HBS_HOT = 2 HBS_PUSHED = 3 HBS_DISABLED = 4 | |
| WP_HORZSCROLL = 25 | HSS_NORMAL = 1 HSS_HOT = 2 HSS_PUSHED = 3 HSS_DISABLED = 4 | |
| WP_HORZTHUMB = 26 | HTS_NORMAL = 1 HTS_HOT = 2 HTS_PUSHED = 3 HTS_DISABLED = 4 | |
| WP_MAX_BUTTON | MAXBS_NORMAL = 1 MAXBS_HOT = 2 MAXBS_PUSHED = 3 MAXBS_DISABLED = 4 | |
| WP_MAXCAPTION = 5 | MXCS_ACTIVE = 1 MXCS_INACTIVE = 2 MXCS_DISABLED = 3 | |
| WP_MDICLOSEBUTTON = 20 | CBS_NORMAL = 1 CBS_HOT = 2 CBS_PUSHED = 3 CBS_DISABLED = 4 | |
| WP_MDIHELPBUTTON = 24 | HBS_NORMAL = 1 HBS_HOT = 2 HBS_PUSHED = 3 HBS_DISABLED = 4 | |
| WP_MDIMINBUTTON = 16 | MINBS_NORMAL = 1 MINBS_HOT = 2 MINBS_PUSHED = 3 MINBS_DISABLED = 4 | |
| WP_MDIRESTOREBUTTON = 22 | RBS_NORMAL = 1 RBS_HOT = 2 RBS_PUSHED = 3 RBS_DISABLED = 4 | |
| WP_MDISYSBUTTON = 14 | SBS_NORMAL = 1 SBS_HOT = 2 SBS_PUSHED = 3 SBS_DISABLED = 4 | |
| WP_MINBUTTON = 15 | MINBS_NORMAL = 1 MINBS_HOT = 2 MINBS_PUSHED = 3 MINBS_DISABLED = 4 | |
| WP_MINCAPTION = 3 | MNCS_ACTIVE = 1 MNCS_INACTIVE = 2 MNCS_DISABLED = 3 | |
| WP_RESTOREBUTTON = 21 | RBS_NORMAL = 1 RBS_HOT = 2 RBS_PUSHED = 3 RBS_DISABLED = 4 | |
| WP_SMALLCAPTION = 2 | CS_ACTIVE = 1 CS_INACTIVE = 2 CS_DISABLED = 3 | |
| WP_SMALLCAPTIONSIZINGTEMPLATE = 31 | ||
| WP_SMALLCLOSEBUTTON = 19 | CBS_NORMAL = 1 CBS_HOT = 2 CBS_PUSHED = 3 CBS_DISABLED = 4 | |
| WP_SMALLFRAMEBOTTOM = 12 | FS_ACTIVE = 1 FS_INACTIVE = 2 | |
| WP_SMALLFRAMEBOTTOMSIZINGTEMPLATE = 37 | ||
| WP_SMALLFRAMELEFT = 10 | FS_ACTIVE = 1 FS_INACTIVE = 2 | |
| WP_SMALLFRAMELEFTSIZINGTEMPLATE = 33 | ||
| WP_SMALLFRAMERIGHT = 11 | FS_ACTIVE = 1 FS_INACTIVE = 2 | |
| WP_SMALLFRAMERIGHTSIZINGTEMPLATE = 35 | ||
| WP_SMALLHELPBUTTON | HBS_NORMAL = 1 HBS_HOT = 2 HBS_PUSHED = 3 HBS_DISABLED = 4 | |
| WP_SMALLMAXBUTTON | MAXBS_NORMAL = 1 MAXBS_HOT = 2 MAXBS_PUSHED = 3 MAXBS_DISABLED = 4 | |
| WP_SMALLMAXCAPTION = 6 | MXCS_ACTIVE = 1 MXCS_INACTIVE = 2 MXCS_DISABLED = 3 | |
| WP_SMALLMINCAPTION = 4 | MNCS_ACTIVE = 1 MNCS_INACTIVE = 2 MNCS_DISABLED = 3 | |
| WP_SMALLRESTOREBUTTON | RBS_NORMAL = 1 RBS_HOT = 2 RBS_PUSHED = 3 RBS_DISABLED = 4 | |
| WP_SMALLSYSBUTTON | SBS_NORMAL = 1 SBS_HOT = 2 SBS_PUSHED = 3 SBS_DISABLED = 4 | |
| WP_SYSBUTTON = 13 | SBS_NORMAL = 1 SBS_HOT = 2 SBS_PUSHED = 3 SBS_DISABLED = 4 | |
| WP_VERTSCROLL = 27 | VSS_NORMAL = 1 VSS_HOT = 2 VSS_PUSHED = 3 VSS_DISABLED = 4 | |
| WP_VERTTHUMB = 28 | VTS_NORMAL = 1 VTS_HOT = 2 VTS_PUSHED = 3 VTS_DISABLED = 4 |
