Frames Object (ExOrgChart)

The Frames object holds a collection of Frame objects. The Frames property of the control gives access to the Frames collection.

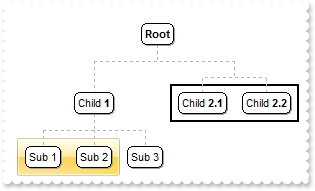

The following screen shot shows different frames on nodes:

A Frame is defined by an union of nodes, and can:

specify whether the frame is shown on the back or on the front using the ShowOnBackground property
define the padding of the frame using the Padding property
define a solid or EBN background color to be displayed on the frame's background, using the BackColor property of the Frame object
The BackgroundExt property of the Frame object, defines unlimited options to show any HTML text, images, colors, EBNs, patterns, borders anywhere on the frame's background.
define a different border or pattern to be shown, using the Pattern property

The Frames collection supports the following properties and methods:

		Name	Description
		Add	Adds an Frame object to the collection and returns a reference to the newly created object.
		Clear	Removes all objects in a collection.
		Count	Returns the number of elements in the collection.
		Item	Returns a specific Frame of the Frames collection, giving its index.
		Remove	Removes a specific member from the Frames collection, giving its index or reference.
