Layers Object (ExGauge) | Exontrol Docs

The Layers object holds a collection of Layer objects. The Layers property gives access to the control's Layers collection. Any layer can display unlimited opaque / transparent graphics, HTML text, can be visible, selectable, dragable and so on. Any layer can change its position in the layers collection as well. The Layer can change its brightness, contrast, grayscale or transparency as well.

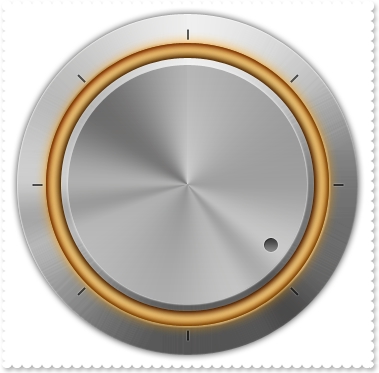

The following screen show shows a control with 10 layers:

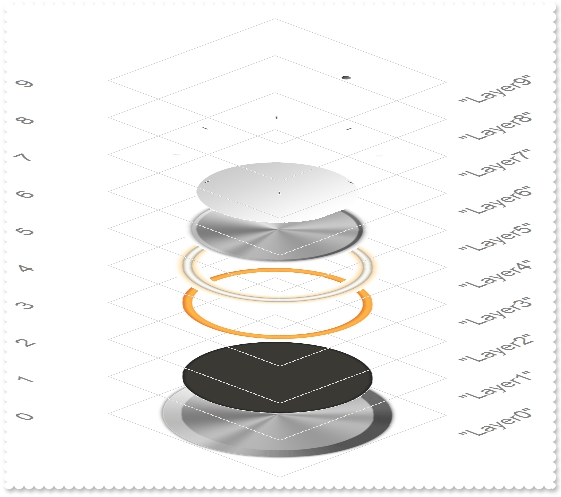

while the following screen shot shows how the layers are arranged:

The Layers collection supports the following properties and methods.

		Name	Description
		Add	Adds a Layer object to the collection and returns a reference to the newly created object.
		Clear	Removes all objects in a collection.
		Count	Specifies the number of layers.
		Item	Returns a specific Layer of the Layers collection.
		Remove	Removes a specific member from the Layers collection.
		VisibleCount	Specifies the number of visible layers.
		VisibleItem	Returns the visible Layer of the Layers collection, based on its position.
