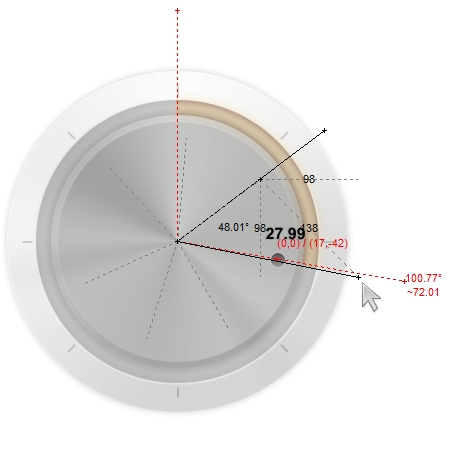

The following information shows all debug information while dragging the layer:
The DebugLayerDragEnum type supports the following flags:
The following information shows all debug information while dragging the layer:
The DebugLayerDragEnum type supports the following flags:
| Name | Value | Description | |||
| exDebugLayerDragNothing | 0 | No debug information is displayed. | |||
| exDebugLayerDragHighlight | 256 | Specifies that layers should be shown with a semi-transparent color, so the debugging information is more clear. | |||
| exDebugLayerDragClick | 1 | Shows the point where the drag operation begins. The X property indicates the x-position of the cursor, when the drag operation starts and the Y property indicates the y-position of the cursor, when the drag operation starts. | |||
| exDebugLayerDragCurrent | 2 | Shows the current dragging point. The CurrentX property indicates the current x-position of the cursor, while dragging the layer and the CurrentY property indicates the current y-position of the cursor, while dragging the layer. | |||
| exDebugLayerDragDeltaX | 4 | Shows the horizontal offset. The DeltaX property returns the offset on the x-coordinate of the the current drag operation, equivalent with the value of CurrentX - X. | |||
| exDebugLayerDragDeltaY | 8 | Shows the vertical offset. The DeltaY property returns the offset on the y-coordinate of the the current drag operation, equivalent with the value of CurrentY - Y. | |||
| exDebugLayerDragDelta | 16 | Shows the distance between clicking and current point. The Delta property, returns the distance between clicking and current points. | |||
| exDebugLayerDragMove | 287 | Shortcut flag for move operation by dragging. It combines exDebugLayerDragClick + exDebugLayerDragCurrent + exDebugLayerDragDeltaX + exDebugLayerDragDeltaY + exDebugLayerDragDelta + exDebugLayerDragHighlight | |||
| exDebugLayerDragRotateCenter | 32 | Shows the rotation center of the dragging layer. The RotateCenterLayer, RotateCenterX and RotateCenterY properties determines the (x,y) rotation center, relative to specified layer. | |||
| exDebugLayerDragDeltaAngle | 64 | Shows the delta angle. The DeltaAngle property specifies the angle (in degrees) that has been rotated the layer/object, during the drag operation. | |||
| exDebugLayerDragDeltaAngleMultiply | 128 | Adds lines to split equally the circle. | |||
| exDebugLayerDragRotate | 483 | Shortcut flag for rotate operation by dragging. It combines exDebugLayerDragClick + exDebugLayerDragCurrent + exDebugLayerDragRotateCenter + exDebugLayerDragDeltaAngle + exDebugLayerDragDeltaAngleMultiply + exDebugLayerDragHighlight. | |||
| exDebugLayerDragAll | -1 | Includes all debug information. |
