The following screen shot shows properties of the clipping objects relative to the layer (InverseClip property is False, by default):
The following screen shot shows properties of the clipping objects relative to the layer (InverseClip property is True):
To define an pie clip region over the layer you can use any of the following properties:
- CenterX, Specifies the x-position / expression of the center of the clip, relative to the layer.
- CenterY, Specifies the y-position / expression of the center of the clip, relative to the layer.
- RadiusX, Specifies the x-radius value / expression of the clip, relative to the layer.
- RadiusY, Specifies the y-radius value / expression of the clip, relative to the layer.
- StartAngle, Specifies the starting angle in degrees relative to the y-axis.
- SweepAngle, Specifies the sweep angle in degrees relative to the starting angle.
To move the clipping region you can use any of the following properties:
- OffsetX, Specifies the x-offset expression / value of the clip, relative to the layer.
- OffsetY, Specifies the y-offset expression / value of the clip, relative to the layer.
If none of these properties are calling no clipping is applied to layer.
The InverseClip property inverses the current clipping region, so anything that was included in the clipping region will be excluded, and reverse.
For instance, having the following gauge:

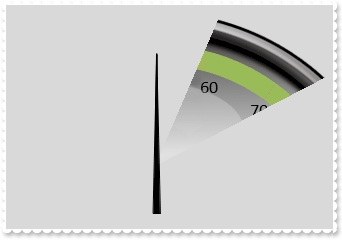

an pie clip region over the background layer shows as:
